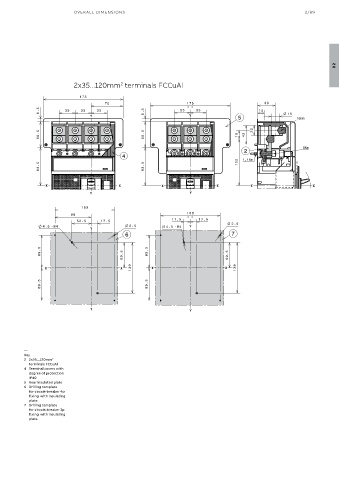

OVER ALL DIMENSIONS                                                              2/89










                                                                                                                       02


                           2x35...120mm  terminals FCCuAl
                                           2























































          —
          Key
          2  2x35...120mm 2
             terminals FCCuAl
          4  Terminal covers with
             degree of protection
           IP40
          5  Rear insulated plate
          6  Drilling template
             for circuit-breaker 4p
             fixing  with insulating
             plate
          7  Drilling template
             for circuit-breaker 3p
             fixing  with insulating
             plate
