Page 172 - SACE Tmax XT - Technical Catalogue

2/92 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

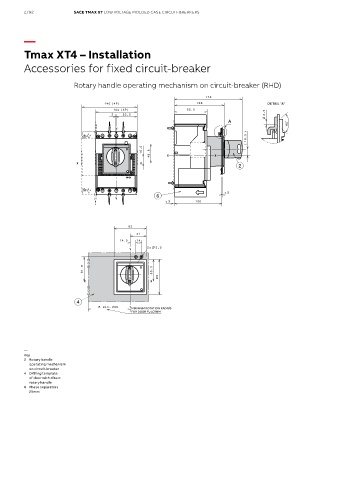

Tmax XT4 – Installation

Accessories for fixed circuit-breaker

Rotary handle operating mechanism on circuit-breaker (RHD)

DETAIL "A"

MINIMUM ROTATION RADIUS
FOR DOOR FULCRUM

—
Key
2 Rotary handle
operating mechanism
on circuit-breaker
4 Drilling template
of door with direct
rotary handle
6 Phase separators
25mm
