Page 173 - SACE Tmax XT - Technical Catalogue

OVER ALL DIMENSIONS 2/93

02

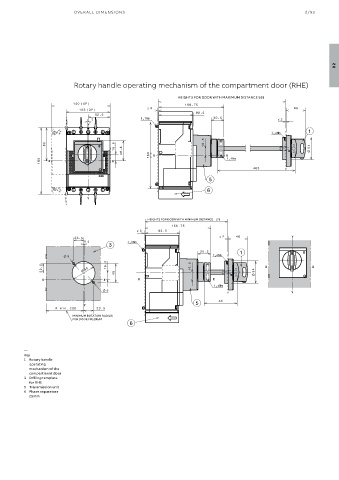

Rotary handle operating mechanism of the compartment door (RHE)

HEIGHTS FOR DOOR WITH MAXIMUM DISTANCE 581

HEIGHTS FOR DOOR WITH MINIMUM DISTANCE 171

MINIMUM ROTATION RADIUS
FOR DOOR FULCRUM

—
Key
1 Rotary handle
operating
mechanism of the
compartment door
3 Drilling template
for RHE
5 Transmission unit
6 Phase separators
25mm
