2/94 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

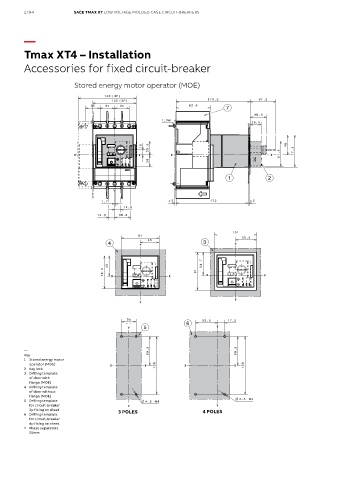

Tmax XT4 – Installation

Accessories for fixed circuit-breaker

Stored energy motor operator (MOE)

—
Key
1 Stored energy motor
operator (MOE)
2 Key lock
3 Drilling template
of door with
flange (MOE)
4 Drilling template
of door without
flange (MOE)
5 Drilling template
for circuit-breaker
3p fixing on sheet 3 POLES 4 POLES
6 Drilling template
for circuit-breaker
4p fixing on sheet
7 Phase separators
25mm
