Page 17 - SACE Tmax XT - Technical Catalogue

INSTALL ATION 1/13
01

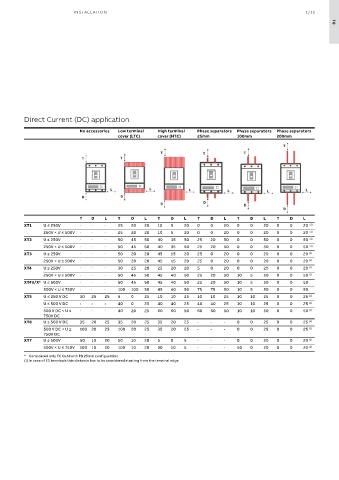

Direct Current (DC) application

No accessories Low terminal High terminal Phase separators Phase separators Phase separators
cover (LTC) cover (HTC) 25mm 100mm 200mm

T D L T D L T D L T D L T D L T D L
XT1 U ≤ 250V - - - 25 20 20 10 5 20 0 0 20 0 0 20 0 0 20 (1)
250V < U ≤ 500V - - - 25 20 20 10 5 20 0 0 20 0 0 20 0 0 20 (1)
XT2 U ≤ 250V - - - 50 45 50 40 35 50 25 20 50 0 0 50 0 0 50 (1)
250V < U ≤ 500V - - - 50 45 50 40 35 50 25 20 50 0 0 50 0 0 50 (1)
XT3 U ≤ 250V - - - 50 20 20 45 15 20 25 0 20 0 0 20 0 0 20 (1)
250V < U ≤ 500V - - - 50 20 20 45 15 20 25 0 20 0 0 20 0 0 20 (1)
XT4 U ≤ 250V - - - 30 25 20 25 20 20 5 0 20 0 0 20 0 0 20 (1)
250V < U ≤ 500V - - - 50 45 50 45 40 50 25 20 50 10 5 50 0 0 50 (1)
XT4V/X* U ≤ 500V - - - 50 45 50 45 40 50 25 20 50 10 5 50 0 0 50
500V < U ≤ 750V - - - 100 100 50 45 40 50 75 75 50 10 5 50 0 0 50
XT5 U ≤ 250 V DC 30 25 25 5 0 25 10 10 25 10 10 25 10 10 25 0 0 25 (1)
U ≤ 500 V DC - - - 40 0 25 40 40 25 40 40 25 10 10 25 0 0 25 (1)
500 V DC < U ≤ - - - 40 20 25 60 60 50 60 60 50 10 10 50 0 0 50 (1)
750V DC
XT6 U ≤ 500 V DC 35 20 25 35 20 25 35 20 25 - - - 0 0 25 0 0 25 (1)
500 V DC < U ≤ 100 20 25 100 20 25 35 20 25 - - - 0 0 25 0 0 25 (1)
750V DC
XT7 U ≤ 500V 50 10 20 50 10 20 5 0 5 - - - 0 0 20 0 0 20 (1)
500V < U ≤ 750V 100 10 20 100 10 20 30 10 5 - - - 50 0 20 0 0 20 (1)
* Considered only FC CuAl with PB 25mm configuration
(1) in case of ES terminals this distance has to be considered starting from the terminal edge
