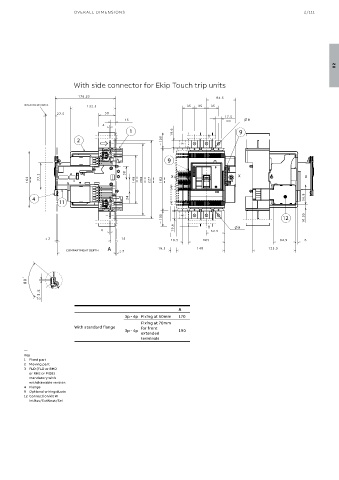

OVER ALL DIMENSIONS 2/111
02
With side connector for Ekip Touch trip units
ISOLATING DISTANCE
COMPARTMENT DEPTH
A
3p - 4p Fixing at 50mm 170
Fixing at 70mm
With standard flange for front
3p - 4p 190
extended
terminals
—
Key
1 Fixed part
2 Moving part
3 FLD (FLD or RHD
or RHE or MOE)
mandatory with
withdrawable version
4 Flange
9 Optional wiring ducts
12 Connection kit W
IntBus/ExtNeut/Sel
