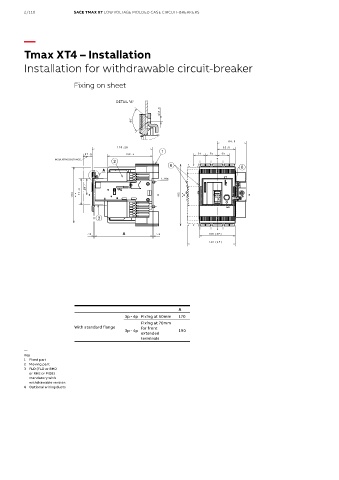

2/110 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS
—
Tmax XT4 – Installation
Installation for withdrawable circuit-breaker
Fixing on sheet
DETAIL "A"
INSULATING DISTANCE
A
3p - 4p Fixing at 50mm 170
Fixing at 70mm
With standard flange for front
3p - 4p 190
extended
terminals
—
Key
1 Fixed part
2 Moving part
3 FLD (FLD or RHD
or RHE or MOE)
mandatory with
withdrawable version
6 Optional wiring ducts
