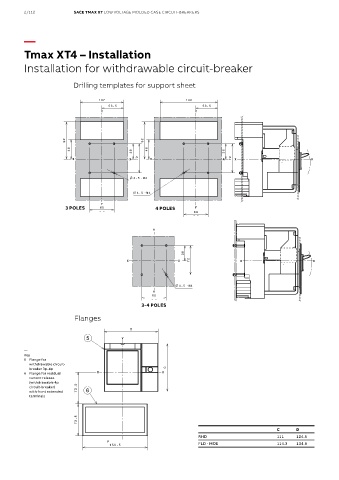

Tmax XT4 – Installation

Installation for withdrawable circuit-breaker

Drilling templates for support sheet

3 POLES 4 POLES

3-4 POLES

Flanges

—
Key
5 Flange for
withdrawable circuit-
breaker 3p-4p
6 Flange for residual
current release
(withdrawable 4p
circuit-breaker)
with front extended
terminals

C D
RHD 111 124.5
FLD - MOE 114.3 134.5
