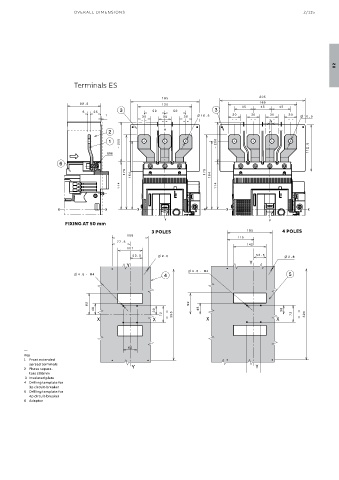

OVER ALL DIMENSIONS                                                              2/115










                                                                                                                       02


                           Terminals ES




























                        FIXING AT 50 mm
                                                      3 POLES                                       4 POLES
























          —
          Key
          1  Front extended
           spread terminals
          2  Phase separa-
           tors 200mm
           3  Insulated plate
          4  Drilling template for
           3p circuit-breaker
          5  Drilling template for
           4p circuit-breaker
          6  Adaptor
