2/116 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

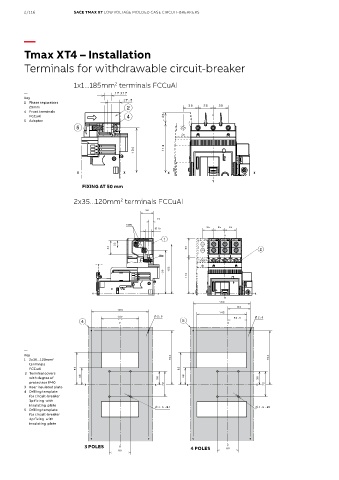

Tmax XT4 – Installation

Terminals for withdrawable circuit-breaker

1x1...185mm terminals FCCuAl
2
—
Key
2 Phase separators
25mm
4 Front terminals
FCCuAl
5 Adaptor

FIXING AT 50 mm

2x35...120mm terminals FCCuAl
2

—
Key
1 2x35...120mm 2
terminals
FCCuAl
2 Terminal covers
with degree of
protection IP40
3 Rear insulated plate
4 Drilling template
for circuit-breaker
3p fixing with
insulating plate
5 Drilling template
for circuit-breaker
4p fixing with
insulating plate

3 POLES 4 POLES
