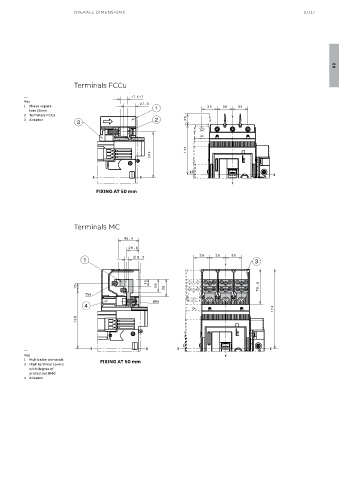

OVER ALL DIMENSIONS 2/117
02
Terminals FCCu
—
Key
1 Phase separa-
tors 25mm
2 Terminals FCCu
3 Adaptor
FIXING AT 50 mm
Terminals MC
—
Key
1 Multicable terminals FIXING AT 50 mm
3 High terminal covers
with degree of
protection IP40
4 Adaptor
