OVER ALL DIMENSIONS                                                              2/157



          —

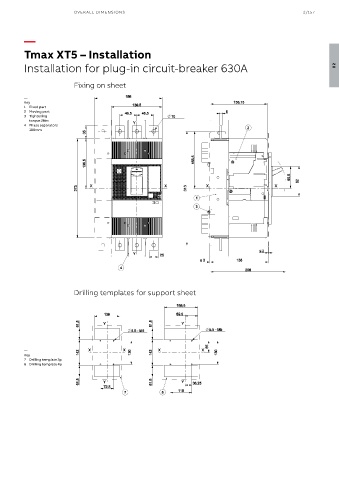

          Tmax XT5 – Installation


          Installation for plug-in circuit-breaker 630A                                                                02


 Drilling template compartment door  Fixing on sheet

          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          4  Phase separators
           100mm

































                           Drilling templates for support sheet











          —
          Key
          7  Drilling template 3p
          8  Drilling template 4p
