Page 255 - SACE Tmax XT - Technical Catalogue
P. 255

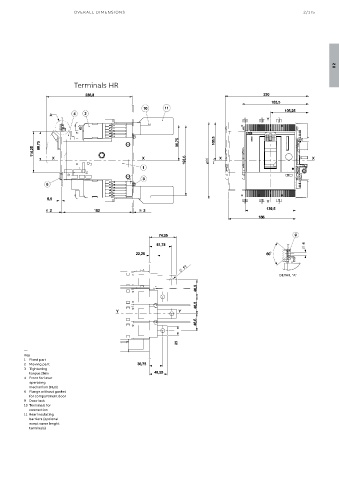

OVER ALL DIMENSIONS 2/175
02
Terminals HR
DETAIL "A"
—
Key
1 Fixed part
2 Moving part
3 Tightening
torque 2Nm
4 Front for lever
operating
mechanism (FLD)
6 Flange without gasket
for compartment door
9 Door lock
10 Terminals for
connection
11 Rear insulating
barriers (optional
exept same lenght
terminals)
