OVER ALL DIMENSIONS 2/177

02

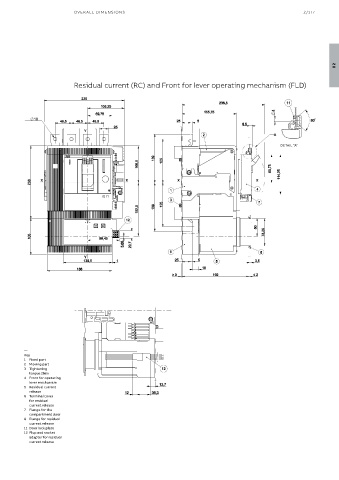

Residual current (RC) and Front for lever operating mechanism (FLD)

DETAIL "A"

—
Key
1 Fixed part
2 Moving part
3 Tightening
torque 2Nm
4 Front for operating
lever mechanism
5 Residual current
release
6 Terminal cover
for residual
current release
7 Flange for the
compartment door
8 Flange for residual
current release
11 Door lock plate
12 Plup and socket
adapter for residual
current release
