P. 256

2/176            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

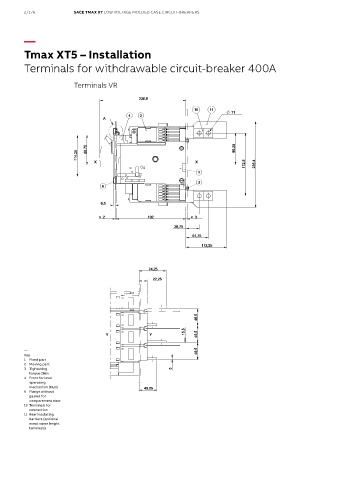

          Tmax XT5 – Installation


          Terminals for withdrawable circuit-breaker 400A


                           Terminals VR
























































          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          4  Front for lever
           operating
           mechanism (FLD)
          6  Flange without
           gasket for
           compartment door
          10  Terminals for
           connection
          11  Rear insulating
           barriers (optional
           exept same lenght
           terminals)
