2/178            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

          Tmax XT5 – Installation

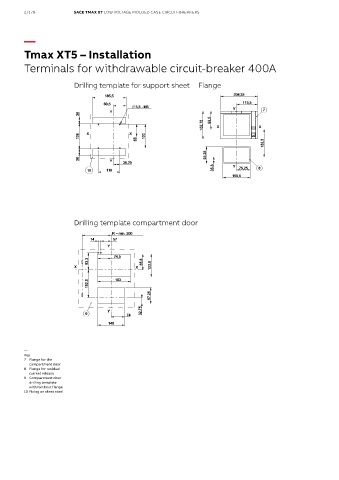

          Terminals for withdrawable circuit-breaker 400A


                           Drilling template for support sheet         Flange




























                           Drilling template compartment door


























          —
          Key
          7  Flange for the
           compartment door
          8  Flange for residual
           current release
          9  Compartment door
           drilling template
           with/without flange
          10  Fixing on sheet steel
