OVER ALL DIMENSIONS                                                              2/179



          —

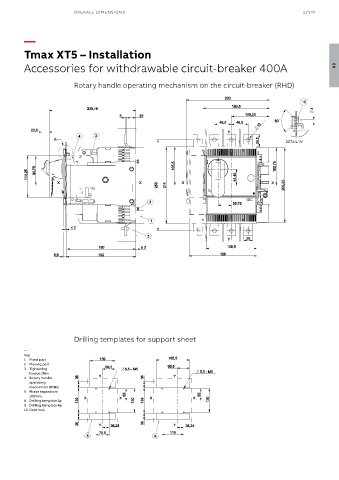

          Tmax XT5 – Installation


          Accessories for withdrawable circuit-breaker 400A                                                            02


                           Rotary handle operating mechanism on the circuit-breaker (RHD)











                                                                                                     DETAIL "A"








































                           Drilling templates for support sheet

          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          4  Rotary handle
           operating
           mechanism (RHD)
          5  Phase separators
           100mm
          8  Drilling template 3p
          9  Drilling template 4p
          10  Door lock
