OVER ALL DIMENSIONS 2/243
02

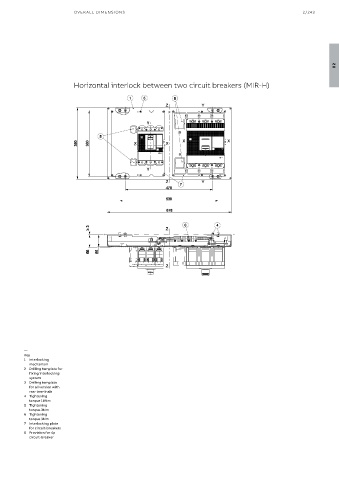

Horizontal interlock between two circuit breakers (MIR-H)
—
Key
1 Interlocking
mechanism
2 Drilling template for
fixing interlocking
system
3 Drilling template
for all version with
rear terminals
4 Tightening
torque 18Nm
5 Tightening
torque 3Nm
6 Tightening
Type Description B C
torque 3Nm
Plate A XT4 F 79.75 152.25 7 Interlocking plate
for circuit-breakers
Plate B XT4 P/W 79.75 152.25 8 Provision for 4p
Plate C XT5 F 96.75 135.25 circuit-breaker
Plate D XT5 400 P/W 96.75 135.25
Plate E XT5 630 P/W 96.75 135.25
