OVER ALL DIMENSIONS 2/11
02

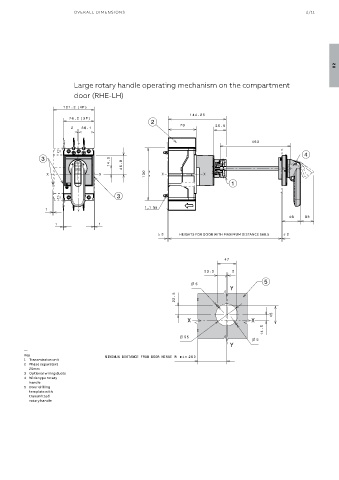

Large rotary handle operating mechanism on the compartment
door (RHE-LH)
HEIGHTS FOR DOOR WITH MAXIMUM DISTANCE 568.5
—
Key
1 Transmission unit
2 Phase separators
25mm
3 Optional wiring ducts
4 Wide type rotary
handle
5 Door drilling
template with
transmitted
rotary handle
