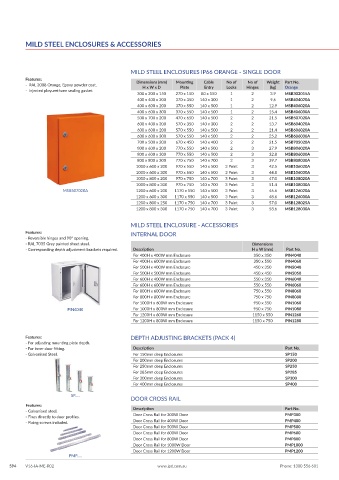

MILD STEEL ENCLOSURES & ACCESSORIES

MILD STEEL ENCLOSURES IP66 ORANGE - SINGLE DOOR
Features: Dimensions (mm) Mounting Cable No of No of Weight Part No.
- RAL 2008 Orange, Epoxy powder coat. H x W x D Plate Entry Locks Hinges (kg) Orange
- Injected ployurethane sealing gasket.
300 x 200 x 150 270 x 150 80 x 150 1 2 3.9 MSB302015A
400 x 400 x 200 370 x 350 140 x 300 1 2 9.6 MSB404020A
400 x 600 x 200 370 x 550 140 x 500 1 2 12.9 MSB406020A
400 x 600 x 300 370 x 550 140 x 500 1 2 15.4 MSB406030A
500 x 700 x 200 470 x 650 140 x 500 2 2 21.5 MSB507020A
600 x 400 x 200 570 x 350 140 x 300 2 2 13.7 MSB604020A
600 x 600 x 200 570 x 550 140 x 500 2 2 21.4 MSB606020A
600 x 600 x 300 570 x 550 140 x 500 2 2 25.2 MSB606030A
700 x 500 x 200 670 x 450 140 x 400 2 2 21.5 MSB705020A
800 x 600 x 200 770 x 550 140 x 500 2 3 27.9 MSB806020A
800 x 600 x 300 770 x 550 140 x 500 2 3 32.8 MSB806030A
800 x 800 x 300 770 x 750 140 x 700 2 3 39.7 MSB808030A
1000 x 600 x 200 970 x 550 140 x 500 3 Point 3 42.5 MSB106020A
1000 x 600 x 300 970 x 550 140 x 500 3 Point 3 44.8 MSB106030A
1000 x 800 x 200 970 x 750 140 x 700 3 Point 3 47.0 MSB108020A
1000 x 800 x 300 970 x 750 140 x 700 3 Point 3 51.4 MSB108030A
MSB507020A 1200 x 600 x 200 1170 x 550 140 x 500 3 Point 3 46.6 MSB126020A
1200 x 600 x 300 1170 x 550 140 x 500 3 Point 3 48.6 MSB126030A
1200 x 800 x 250 1170 x 750 140 x 700 3 Point 3 57.0 MSB128025A
1200 x 800 x 300 1170 x 750 140 x 700 3 Point 3 58.6 MSB128030A

MILD STEEL ENCLOSURE - ACCESSORIES
Features: INTERNAL DOOR
- Reversible hinges and 90° opening.
- RAL 7035 Grey painted sheet steel. Dimensions
- Corresponding depth adjustment brackets required. Description H x W (mm) Part No.
For 400H x 400W mm Enclosure 350 x 350 PIN4040
For 400H x 600W mm Enclosure 350 x 550 PIN4060
For 500H x 400W mm Enclosure 450 x 350 PIN5040
For 500H x 500W mm Enclosure 450 x 450 PIN5050
For 600H x 400W mm Enclosure 550 x 350 PIN6040
For 600H x 600W mm Enclosure 550 x 550 PIN6060
For 800H x 600W mm Enclosure 750 x 550 PIN8060
For 800H x 800W mm Enclosure 750 x 750 PIN8080
For 1000H x 600W mm Enclosure 950 x 550 PIN1060
PIN4040 For 1000H x 800W mm Enclosure 950 x 750 PIN1080
For 1200H x 600W mm Enclosure 1150 x 550 PIN1260
For 1200H x 800W mm Enclosure 1150 x 750 PIN1280

Features: DEPTH ADJUSTING BRACKETS (PACK 4)
- For adjusting mounting plate depth.
- For inner door fitting. Description Part No.
- Galvanised Steel. For 150mm deep Enclosures SP150
For 200mm deep Enclosures SP200
For 250mm deep Enclosures SP250
For 285mm deep Enclosures SP285
For 300mm deep Enclosures SP300
For 400mm deep Enclosures SP400
SP.....
DOOR CROSS RAIL
Features: Description Part No.
- Galvanised steel.
- Fixes directly to door profiles. Door Cross Rail for 300W Door PMP300
- Fixing screws included. Door Cross Rail for 400W Door PMP400
Door Cross Rail for 500W Door PMP500
Door Cross Rail for 600W Door PMP600
Door Cross Rail for 800W Door PMP800
Door Cross Rail for 1000W Door PMP1000
Door Cross Rail for 1200W Door PMP1200
PMP.....
