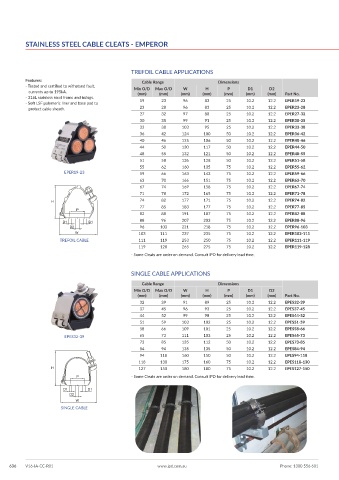

STAINLESS STEEL CABLE CLEATS - EMPEROR

TREFOIL CABLE APPLICATIONS
Features: Cable Range Dimensions
- Tested and certified to withstand fault. Min O/D Max O/D W H P D1 D2
currents up to 195kA. (mm) (mm) (mm) (mm) (mm) (mm) (mm) Part No.
- 316L stainless steel frame and fixings. 19 23 96 83 25 10.2 12.2 EPER19-23
- Soft LSF polymeric liner and base pad to
protect cable sheath. 23 28 96 83 25 10.2 12.2 EPER23-28
27 32 97 88 25 10.2 12.2 EPER27-32
30 35 99 91 25 10.2 12.2 EPER30-35
33 38 103 95 25 10.2 12.2 EPER33-38
36 42 124 100 50 10.2 12.2 EPER36-42
40 46 125 106 50 10.2 12.2 EPER40-46
44 50 130 117 50 10.2 12.2 EPER44-50
48 55 132 121 50 10.2 12.2 EPER48-55
51 58 136 128 50 10.2 12.2 EPER51-58
55 62 160 135 75 10.2 12.2 EPER55-62
EPER19-23 59 66 163 143 75 10.2 12.2 EPER59-66
63 70 166 151 75 10.2 12.2 EPER63-70
67 74 169 158 75 10.2 12.2 EPER67-74
71 78 172 165 75 10.2 12.2 EPER71-78
74 82 177 171 75 10.2 12.2 EPER74-82
77 85 183 177 75 10.2 12.2 EPER77-85
82 88 191 187 75 10.2 12.2 EPER82-88
88 96 207 203 75 10.2 12.2 EPER88-96
96 103 221 218 75 10.2 12.2 EPER96-103
103 111 237 235 75 10.2 12.2 EPER103-111
TREFOIL CABLE 111 119 253 250 75 10.2 12.2 EPER111-119
119 128 265 275 75 10.2 12.2 EPER119-128
- Some Cleats are order on demand. Consult IPD for delivery lead time.

SINGLE CABLE APPLICATIONS

Cable Range Dimensions
Min O/D Max O/D W H P D1 D2
(mm) (mm) (mm) (mm) (mm) (mm) (mm) Part No.
32 39 91 89 25 10.2 12.2 EPES32-39
37 45 96 93 25 10.2 12.2 EPES37-45
44 52 99 98 25 10.2 12.2 EPES44-52
51 59 103 102 25 10.2 12.2 EPES51-59
58 66 109 101 25 10.2 12.2 EPES58-66
EPES32-39 65 73 111 103 25 10.2 12.2 EPES65-73
73 85 135 112 50 10.2 12.2 EPES73-85
84 94 135 135 50 10.2 12.2 EPES84-94
94 118 160 150 50 10.2 12.2 EPES94-118
118 130 175 160 75 10.2 12.2 EPES118-130
127 150 180 180 75 10.2 12.2 EPES127-150
- Some Cleats are order on demand. Consult IPD for delivery lead time.

SINGLE CABLE
