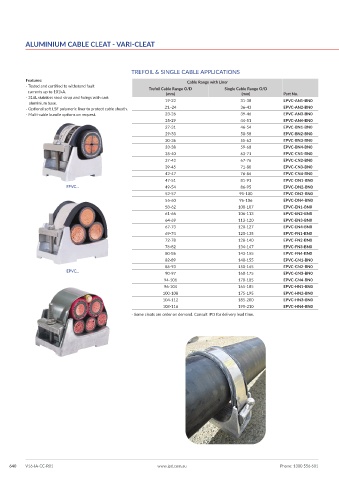

ALUMINIUM CABLE CLEAT - VARI-CLEAT

TREFOIL & SINGLE CABLE APPLICATIONS
Features: Cable Range with Liner
- Tested and certified to withstand fault Trefoil Cable Range O/D Single Cable Range O/D
currents up to 101kA. (mm) (mm) Part No.
- 316L stainless steel strap and fixings with cast 19-22 31-38 EPVC-AN1-BN0
aluminium base.
- Optional soft LSF polymeric liner to protect cable sheath. 21.-24 36-43 EPVC-AN2-BN0
- Multi-cable bundle options on request. 23-26 39-46 EPVC-AN3-BN0
25-29 44-51 EPVC-AN4-BN0
27-31 46-54 EPVC-BN1-BN0
29-33 50-58 EPVC-BN2-BN0
30-36 55-63 EPVC-BN3-BN0
33-38 59-68 EPVC-BN4-BN0
35-40 63-71 EPVC-CN1-BN0
37-42 67-76 EPVC-CN2-BN0
39-45 71-80 EPVC-CN3-BN0
42-47 76-86 EPVC-CN4-BN0
47-51 81-91 EPVC-DN1-BN0
EPVC... 49-54 86-95 EPVC-DN2-BN0
52-57 91-100 EPVC-DN3-BN0
55-60 96-106 EPVC-DN4-BN0
58-62 100-107 EPVC-EN1-BN0
61-66 106-113 EPVC-EN2-BN0
64-69 113-120 EPVC-EN3-BN0
67-73 120-127 EPVC-EN4-BN0
69-74 120-135 EPVC-FN1-BN0
72-78 128-140 EPVC-FN2-BN0
76-82 134-147 EPVC-FN3-BN0
80-86 143-155 EPVC-FN4-BN0
82-89 140-155 EPVC-GN1-BN0
86-93 150-165 EPVC-GN2-BN0
EPVC... 90-97 160-175 EPVC-GN3-BN0
94-101 170-185 EPVC-GN4-BN0
96-104 165-185 EPVC-HN1-BN0
100-108 175-195 EPVC-HN2-BN0
104-112 185-200 EPVC-HN3-BN0
108-116 195-210 EPVC-HN4-BN0
- Some cleats are order on demand. Consult IPD for delivery lead time.
