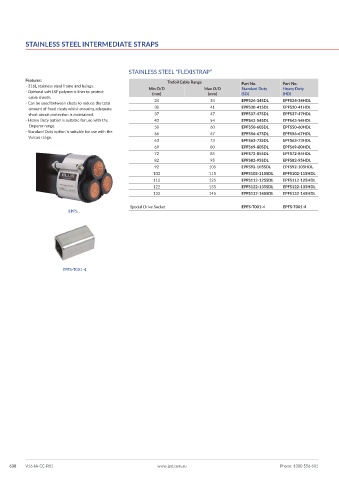

Page 646 - V16 Catalogue Final

STAINLESS STEEL INTERMEDIATE STRAPS

STAINLESS STEEL “FLEXISTRAP”
Features: Trefoil Cable Range Part No. Part No.
- 316L stainless steel frame and fixings. Min O/D Max O/D Standard Duty Heavy Duty
- Optional soft LSF polymeric liner to protect (mm) (mm) (SD) (HD)
cable sheath. 24 34 EPFS24-34SDL EPFS24-34HDL
- Can be used between cleats to reduce the total
amount of fixed cleats whilst ensuring adequate 30 41 EPFS30-41SDL EPFS30-41HDL
short circuit protection is maintained. 37 47 EPFS37-47SDL EPFS37-47HDL
- Heavy Duty option is suitable for use with the 43 54 EPFS43-54SDL EPFS43-54HDL
Emperor range. 50 60 EPFS50-60SDL EPFS50-60HDL
- Standard Duty option is suitable for use with the 56 67 EPFS56-67SDL EPFS56-67HDL
Vulcan range.
63 73 EPFS63-73SDL EPFS63-73HDL
69 80 EPFS69-80SDL EPFS69-80HDL
72 85 EPFS72-85SDL EPFS72-85HDL
82 95 EPFS82-95SDL EPFS82-95HDL
92 105 EPFS92-105SDL EPFS92-105HDL
102 115 EPFS102-115SDL EPFS102-115HDL
112 125 EPFS112-125SDL EPFS112-125HDL
122 135 EPFS122-135SDL EPFS122-135HDL
132 145 EPFS132-145SDL EPFS132-145HDL

Special Drive Socket EPFS-T001-4 EPFS-T001-4
EPFS...

EPFS-T001-4

638 V16-IA-CC-R01 www.ipd.com.au Phone: 1300 556 601
