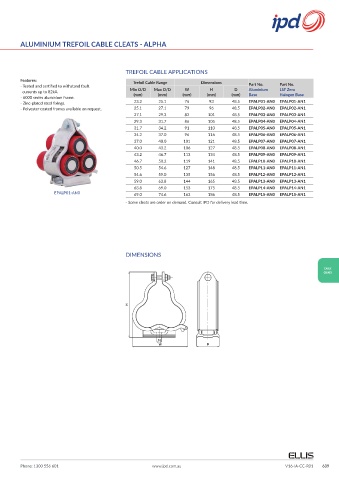

Page 647 - V16 Catalogue Final

ALUMINIUM TREFOIL CABLE CLEATS - ALPHA

TREFOIL CABLE APPLICATIONS
Features: Trefoil Cable Range Dimensions
- Tested and certified to withstand fault. Part No. Part No.
D
W
H
currents up to 82kA. Min O/D Max O/D (mm) (mm) (mm) Aluminium LSF Zero
(mm)
(mm)
Halogen Base
Base
- 6000 series aluminium frame.
- Zinc-plated steel fixings. 23.2 25.1 76 93 48.5 EPALP01-AN0 EPALP01-AN1
- Polyester coated frames available on request. 25.1 27.1 79 96 48.5 EPALP02-AN0 EPALP02-AN1
27.1 29.3 82 101 48.5 EPALP03-AN0 EPALP03-AN1
29.3 31.7 86 105 48.5 EPALP04-AN0 EPALP04-AN1
31.7 34.2 91 110 48.5 EPALP05-AN0 EPALP05-AN1
34.2 37.0 96 116 48.5 EPALP06-AN0 EPALP06-AN1
37.0 40.0 101 121 48.5 EPALP07-AN0 EPALP07-AN1
40.0 43.2 106 127 48.5 EPALP08-AN0 EPALP08-AN1
43.2 46.7 113 134 48.5 EPALP09-AN0 EPALP09-AN1
46.7 50.2 119 141 48.5 EPALP10-AN0 EPALP10-AN1
50.5 54.6 127 148 48.5 EPALP11-AN0 EPALP11-AN1
54.6 59.0 135 156 48.5 EPALP12-AN0 EPALP12-AN1
59.0 63.8 144 165 48.5 EPALP13-AN0 EPALP13-AN1
63.8 69.0 153 175 48.5 EPALP14-AN0 EPALP14-AN1
EPALP01-AN0 69.0 74.6 163 186 48.5 EPALP15-AN0 EPALP15-AN1
- Some cleats are order on demand. Consult IPD for delivery lead time.

DIMENSIONS

CABLE
CLEATS
