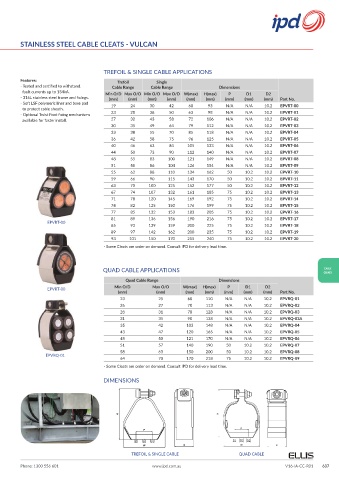

Page 645 - V16 Catalogue Final

STAINLESS STEEL CABLE CLEATS - VULCAN

TREFOIL & SINGLE CABLE APPLICATIONS
Features: Trefoil Single
- Tested and certified to withstand. Cable Range Cable Range Dimensions
fault currents up to 134kA. Min O/D Max O/D Min O/D Max O/D W(max) H(max) P D1 D2
- 316L stainless steel frame and fixings. (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) Part No.
- Soft LSF polymeric liner and base pad 19 24 30 42 60 93 N/A N/A 10.2 EPVRT-00
to protect cable sheath.
- Optional Twist Foot fixing mechanisms 23 28 38 50 63 98 N/A N/A 10.2 EPVRT-01
available for faster install. 27 32 43 58 72 106 N/A N/A 10.2 EPVRT-02
30 35 49 64 79 112 N/A N/A 10.2 EPVRT-03
33 38 55 70 85 118 N/A N/A 10.2 EPVRT-04
36 42 58 75 96 125 N/A N/A 10.2 EPVRT-05
40 46 63 84 105 133 N/A N/A 10.2 EPVRT-06
44 50 73 90 112 140 N/A N/A 10.2 EPVRT-07
48 55 83 100 121 149 N/A N/A 10.2 EPVRT-08
51 58 86 104 126 154 N/A N/A 10.2 EPVRT-09
55 62 88 110 134 162 50 10.2 10.2 EPVRT-10
59 66 90 115 143 170 50 10.2 10.2 EPVRT-11
63 70 100 125 152 177 50 10.2 10.2 EPVRT-12
67 74 107 132 161 185 75 10.2 10.2 EPVRT-13
71 78 120 145 169 192 75 10.2 10.2 EPVRT-14
74 82 125 150 176 199 75 10.2 10.2 EPVRT-15
77 85 132 153 183 205 75 10.2 10.2 EPVRT-16
81 89 136 156 190 216 75 10.2 10.2 EPVRT-17
EPVRT-00
85 93 139 159 200 225 75 10.2 10.2 EPVRT-18
89 97 142 162 200 235 75 10.2 10.2 EPVRT-19
93 101 150 170 215 240 75 10.2 10.2 EPVRT-20
- Some Cleats are order on demand. Consult IPD for delivery lead time.

QUAD CABLE APPLICATIONS CABLE
CLEATS
Quad Cable Range Dimensions
EPVRT-00 Min O/D Max O/D W(max) H(max) P D1 D2
(mm) (mm) (mm) (mm) (mm) (mm) (mm) Part No.
23 25 68 110 N/A N/A 10.2 EPVRQ-01
26 27 70 113 N/A N/A 10.2 EPVRQ-02
28 31 78 128 N/A N/A 10.2 EPVRQ-03
31 35 90 138 N/A N/A 10.2 EPVRQ-03A
35 42 103 148 N/A N/A 10.2 EPVRQ-04
43 47 120 165 N/A N/A 10.2 EPVRQ-05
48 50 121 170 N/A N/A 10.2 EPVRQ-06
51 57 140 190 50 10.2 10.2 EPVRQ-07
58 63 150 200 50 10.2 10.2 EPVRQ-08
EPVRQ-01
64 70 170 218 75 10.2 10.2 EPVRQ-09
- Some Cleats are order on demand. Consult IPD for delivery lead time.
DIMENSIONS

H

P
D1 D2 D1
W D
TREFOIL & SINGLE CABLE QUAD CABLE

Phone: 1300 556 601 www.ipd.com.au V16-IA-CC-R01 637
