ABB MOTOR PROTECTION AND CONTROL 3/327

—

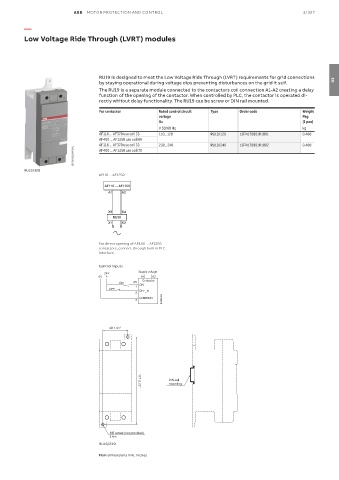

Low Voltage Ride Through (LVRT) modules

RU19 is designed to meet the Low Voltage Ride Through (LVRT) requirements for grid connections
by staying operational during voltage dips preventing disturbances on the grid it self. 03
The RU19 is a separate module connected to the contactors coil connection A1-A2 creating a delay
function of the opening of the contactor. When controlled by PLC, the contactor is operated di-
rectly whitout delay functionality. The RU19 can be screw or DIN rail mounted.
For contactor Rated control circuit Type Order code Weight
voltage Pkg
Uc (1 pce)
V 50/60 Hz kg
AF116 ... AF370 use coil 33 110...120 RU19/120 1SFN170801R1001 0.400
AF400 ... AF1250 use coil 69
AF116 ... AF370 use coil 33 230...240 RU19/240 1SFN170801R1002 0.400
1SFC101223V0001
AF400 ... AF1250 use coil 70

RU19/120
AF116 ... AF1250
AF116 ... AF1250
A1 A2

X3 X4
RU19
X1 X2

For direct opening of AF400 ... AF1250
contactors, connect through built in PLC
interface.

Control inputs

49 1.93"

DIN-rail
mounting
171 6.73"

M5 screw (not provided)
5 Nm
RU19/240
Main dimensions mm, inches
