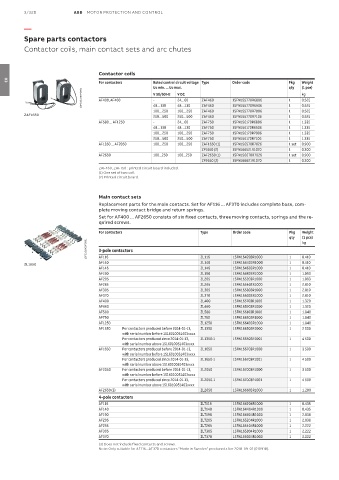

3/328 ABB MOTOR PROTECTION AND CONTROL

—

Spare parts contactors
Contactor coils, main contact sets and arc chutes

Contactor coils
For contactors Rated control circuit voltage Type Order code Pkg Weight
03
Uc min. ... Uc max. qty (1 pce)
1SFC101007F0201 AF400, AF460 V 50/60 Hz V DC ZAF460 1SFN155770R6806 1 kg
24…60
-
0.525
48…130
ZAF460
100…250
1SFN155770R7006
0.525
100…250 48…130 ZAF460 1SFN155770R6906 1 1 0.525
ZAF1650
250…500 250…500 ZAF460 1SFN155770R7106 1 0.525
AF580 ... AF1250 - 24…60 ZAF750 1SFN156170R6806 1 1.335
48…130 48…130 ZAF750 1SFN156170R6906 1 1.335
100…250 100…250 ZAF750 1SFN156170R7006 1 1.335
250…500 250…500 ZAF750 1SFN156170R7106 1 1.335
AF1350 ... AF2050 100…250 100…250 ZAF1650 (1) 1SFN156570R7026 1 set 0.900
ZP1650 (2) 1SFN166521R1070 1 0.300
AF2650 100...250 100...250 ZAF2650 (1) 1SFN156670R7026 1 set 0.900
ZP2650 (2) 1SFN166621R1070 1 0.300
ZAF460, ZAF750 : printed circuit board included.
(1) One set of two coil.
(2) Printed circuit board.
Main contact sets
Replacement parts for the main contacts. Set for AF116 ... AF370 includes complete base, com-
plete moving contact bridge and return springs.
Set for AF400 ... AF2650 consists of six fixed contacts, three moving contacts, springs and the re-
quired screws.
For contactors Type Order code Pkg Weight
qty (1 pce)
1SFC101009F0201 3-pole contactors
kg
AF116
1SFN164403R1000
ZL140
0.410
AF140 ZL116 1SFN164203R1000 1 1 0.410
ZL1650
AF146 ZL146 1SFN164603R1000 1 0.410
AF190 ZL190 1SFN164803R1000 1 1.093
AF205 ZL205 1SFN165203R1000 1 1.093
AF265 ZL265 1SFN165403R1000 1 2.010
AF305 ZL305 1SFN165803R1000 1 2.010
AF370 ZL370 1SFN166003R1000 1 2.010
AF400 ZL400 1SFN165703R1000 1 1.320
AF460 ZL460 1SFN165903R1000 1 1.320
AF580 ZL580 1SFN166103R1000 1 1.840
AF750 ZL750 1SFN166303R1000 1 1.840
AF1250 ZL1250 1SFN166403R1000 1 1.840
AF1350 For contactors produced before 2014-01-13, ZL1350 1SFN166503R1000 1 2 500
with serial number before 1S16010051403xxxx
For contactors produced since 2014-01-13, ZL1350-1 1SFN166503R1001 1 4 500
with serial number above 1S16010051403xxxx
AF1650 For contactors produced before 2014-01-13, ZL1650 1SFN166703R1000 1 3 500
with serial number before 1S16010051403xxxx
For contactors produced since 2014-01-13, ZL1650-1 1SFN166703R1001 1 4 500
with serial number above 1S16010051403xxxx
AF2050 For contactors produced before 2014-01-13, ZL2050 1SFN167003R1000 1 3 500
with serial number before 1S16010051403xxxx
For contactors produced since 2014-01-13, ZL2050-1 1SFN167003R1001 1 4 500
with serial number above 1S16010051403xxxx
AF2650 (3) ZL2650 1SFN166603R1000 1 1.200
4-pole contactors
AF116 ZLT116 1SFN164204R1000 1 0.435
AF140 ZLT140 1SFN164404R1000 1 0.435
AF190 ZLT190 1SFN164804R1000 1 2.038
AF205 ZLT205 1SFN165204R1000 1 2.038
AF265 ZLT265 1SFN165404R1000 1 2.222
AF305 ZLT305 1SFN165804R1000 1 2.222
AF370 ZLT370 1SFN166004R1000 1 2.222
(3) Does not include fixed contacts and screws.
Note: Only suitable for AF116...AF370 contactors "Made in Sweden" produced after 2018-09-01 (010918).
