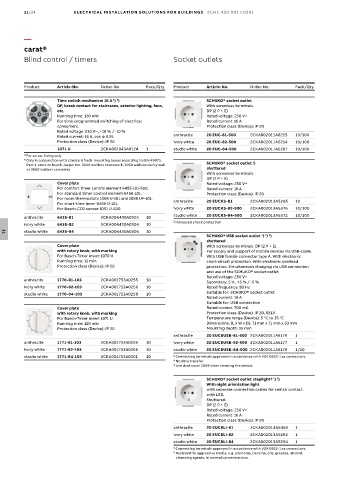

11/24 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
carat®
Blind control / timers Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Time switch mechanism 16 A ) ) SCHUKO® socket outlet
1
2
DP, break contact for staircases, exterior lighting, fans, With screwless terminals.
etc. DP (2 P + E)
Running time: 120 min Rated voltage: 250 V~
For time-programmed switching of electrical Rated current: 16 A
consumers. Protection class (Device): IP 20
Rated voltage: 230 V~, +10 % / -10 %
Rated current: 16 A, cos φ 0.25 anthracite 20 EUC-81-500 2CKA002011A6215 10/100
Protection class (Device): IP 20 ivory white 20 EUC-82-500 2CKA002011A6214 10/100
1071 U 2CKA001043A0124 1 studio white 20 EUC-84-500 2CKA002011A6207 10/100
1) For screw-fixing only
2) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
1
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall SCHUKO® socket outlet )
or 3060 wallbox concrete) shuttered
With screwless terminals.
DP (2 P + E)
Cover plate Rated voltage: 250 V~
For comfort timer control element 6455-101-500. Rated current: 16 A
For standard timer control element 6456-101. Protection class (Device): IP 20
For room thermostats 1098 U-101 and 1098 UF-101.
For short-time timer 6465 U-101. anthracite 20 EUCKS-81 2CKA002013A5265 10
For Busch-CO2 sensor 1091 U-500. ivory white 20 EUCKS-82-500 2CKA002013A5376 10/100
studio white 20 EUCKS-84-500 2CKA002013A5372 10/100
anthracite 6435-81 2CKA006430A0303 10
1) Increased shock protection .
ivory white 6435-82 2CKA006430A0304 10
studio white 6435-84 2CKA006430A0306 10
SCHUKO® USB socket outlet ) ) )
3
2
1
11
shuttered
Cover plate With screwless terminals. DP (2 P + E).
with rotary knob, with marking For supply and support of mobile devices via USB-cable.
For Busch-Timer insert 1070 U. With USB female connector type A. With electronic
Running time: 15 min short-circuit protection. With electronic overload
Protection class (Device): IP 20 protection. Simultaneous charging via USB connection
and use of the SCHUKO® socket outlet.
Rated voltage: 250 V~
anthracite 1770-81-103 2CKA001753A0255 10
Secondary: 5 V-, +5 % / -5 %
ivory white 1770-82-103 2CKA001753A0256 10 Rated frequency: 50 Hz
studio white 1770-84-103 2CKA001753A0258 10 Suitable for: SCHUKO® socket outlet
Rated current: 16 A
Suitable for: USB connection
Cover plate Rated current: 700 mA
with rotary knob, with marking Protection class (Device): IP 20, SELV
For Busch-Timer insert 1071 U. Temperature range (Device): 5 °C to 35 °C
Running time: 120 min Dimensions: (L x W x D): 71 mm x 71 mm x 53 mm
Protection class (Device): IP 20 Mounting depth: 35 mm
anthracite 20 EUCBUSB-81-500 2CKA002011A6176 1
anthracite 1771-81-103 2CKA001753A0265 10 ivory white 20 EUCBUSB-82-500 2CKA002011A6177 1
ivory white 1771-82-103 2CKA001753A0266 10 studio white 20 EUCBUSB-84-500 2CKA002011A6179 1/10
studio white 1771-84-103 2CKA001753A0301 10 1) Connecting terminals approved in accordance with VDE 0620-1 as connectors.
2) No data transfer.
3) Use dust cover 2098 when cleaning the device.
SCHUKO® socket outlet steplight® ) ) 2
1
With night orientation light
with separate connection cables for switch contact.
with LED,
Shuttered.
DP (2 P + E)
Rated voltage: 250 V~
Rated current: 16 A
Protection class (Device): IP 20
anthracite 20 EUCBLI-81 2CKA002013A5459 1
ivory white 20 EUCBLI-82 2CKA002013A5292 1
studio white 20 EUCBLI-84 2CKA002013A5294 1
1) Connecting terminals approved in accordance with VDE 0620-1 as connectors.
2) Resistant to aggressive media, e.g. ammonia, benzine, oils, greases, alcohol,
cleansing agents, in normal concentrations.
