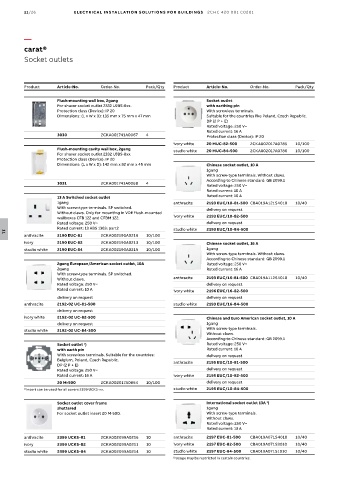

Page 1132 - Din prodcuts 2020

11/26 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
carat®
Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Flush-mounting wall box, 2gang Socket outlet
For shaver socket outlet 2332 UJBS-8xx. with earthing pin
Protection class (Device): IP 20 With screwless terminals.
Dimensions: (L x W x D): 135 mm x 75 mm x 47 mm Suitable for the countries like Poland, Czech Republic.
DP (2 P + E)
Rated voltage: 250 V~
Rated current: 16 A
3030 2CKA001741A0067 4 Protection class (Device): IP 20
ivory white 20 MUC-82-500 2CKA002017A0785 10/100
Flush-mounting cavity wall box, 2gang studio white 20 MUC-84-500 2CKA002017A0786 10/100
For shaver socket outlet 2332 UJBS-8xx.
Protection class (Device): IP 20
Dimensions: (L x W x D): 142 mm x 82 mm x 45 mm Chinese socket outlet, 10 A
1gang
With screw-type terminals. Without claws.
According to Chinese standard: GB 2099.1
3031 2CKA001741A0068 4
Rated voltage: 250 V~
Rated current: 10 A
13 A Switched socket outlet Rated current: 10 A
1gang anthracite 2193 EUC/10-81-500 CBA019A121S4010 10/40
With screw-type terminals. SP switched. delivery on request
Without claws. Only for mounting in VDE flush-mounted
wallboxes CFB 122 and CFBM 122. ivory white 2193 EUC/10-82-500
Rated voltage: 250 V~ delivery on request
Rated current: 13 ABS 1363: part2 studio white 2193 EUC/10-84-500
anthracite 2190 EUC-81 2CKA002190A0216 10/100
11
ivory 2190 EUC-82 2CKA002190A0213 10/100 Chinese socket outlet, 16 A
studio white 2190 EUC-84 2CKA002190A0215 10/100 1gang
With screw-type terminals. Without claws.
According to Chinese standard: GB 2099.1
2gang European/American socket outlet, 10A Rated voltage: 250 V~
2gang Rated current: 16 A
With screw-type terminals. SP switched.
Without claws. anthracite 2193 EUC/16-81-500 CBA019A112S4010 10/40
Rated voltage: 250 V~ delivery on request
Rated current: 10 A ivory white 2196 EUC/16-82-500
delivery on request delivery on request
anthracite 2192-02 UC-81-500 studio white 2193 EUC/16-84-500
delivery on request
ivory white 2192-02 UC-82-500 Chinese and Euro American socket outlet, 10 A
delivery on request 1gang
studio white 2192-02 UC-84-500 With screw-type terminals.
Without claws.
According to Chinese standard: GB 2099.1
Socket outlet ) 1 Rated voltage: 250 V~
with earth pin Rated current: 10 A
With screwless terminals. Suitable for the countries: delivery on request
Belgium, Poland, Czech Republic. anthracite 2195 EUC/10-81-500
DP (2 P + E)
Rated voltage: 250 V~ delivery on request
Rated current: 16 A ivory white 2195 EUC/10-82-500
20 M-500 2CKA002017A0854 10/100 delivery on request
1) Insert can be used for all covers 2399 UCKS-xx. studio white 2195 EUC/10-84-500

1
Socket outlet cover frame International socket outlet 13A )
shuttered 1gang
For socket outlet insert 20 M-500. With screw-type terminals.
Without claws.
Rated voltage: 250 V~
Rated current: 13 A
anthracite 2399 UCKS-81 2CKA002099A0216 10 anthracite 2197 EUC-81-500 CBA019A071S4010 10/40
ivory 2399 UCKS-82 2CKA002099A0211 10 ivory white 2197 EUC-82-500 CBA019A071S3010 10/40
studio white 2399 UCKS-84 2CKA002099A0214 10 studio white 2197 EUC-84-500 CBA019A071S1010 10/40
1) Usage may be restricted in certain countries.
