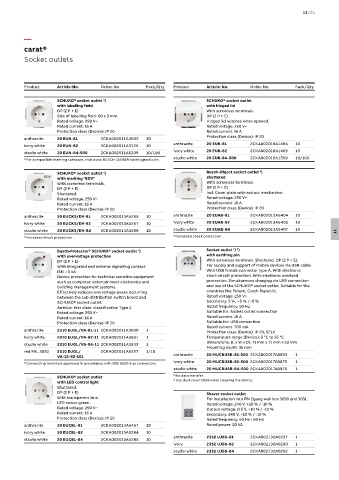

Page 1131 - Din prodcuts 2020

11/25

—
carat®
Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
SCHUKO® socket outlet ) SCHUKO® socket outlet
with labelling field with hinged lid
DP (2 P + E) With screwless terminals.
Size of labelling field: 60 x 9 mm. DP (2 P + E)
Rated voltage: 250 V~ Hinged lid notches when opened.
Rated current: 16 A Rated voltage: 250 V~
Protection class (Device): IP 20 Rated current: 16 A
Protection class (Device): IP 20
anthracite 20 EUN-81 2CKA002011A3802 10
ivory white 20 EUN-82 2CKA002011A3726 10 anthracite 20 EUK-81 2CKA002018A1486 10
studio white 20 EUN-84-500 2CKA002011A6209 10/100 ivory white 20 EUK-82 2CKA002018A1465 10
1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com. studio white 20 EUK-84-500 2CKA002018A1509 10/100

SCHUKO® socket outlet ) Busch-Object socket outlet ) 1
1
with marking "EDV" shuttered
With screwless terminals. With screwless terminals.
DP (2 P + E) DP (2 P + E)
Shuttered. Incl. Cover plate with extract mechanism.
Rated voltage: 250 V~ Rated voltage: 250 V~
Rated current: 16 A Rated current: 16 A
Protection class (Device): IP 20 Protection class (Device): IP 20
anthracite 20 EUCKS/DV-81 2CKA002013A5266 10 anthracite 20 EUAB-81 2CKA002013A5404 10
ivory white 20 EUCKS/DV-82 2CKA002013A5267 10 ivory white 20 EUAB-82 2CKA002013A5405 10
studio white 20 EUCKS/DV-84 2CKA002013A5268 10 studio white 20 EUAB-84 2CKA002013A5407 10 11
1) Increased shock protection .
1) Increased shock protection .
1
2
Busch-Protector® SCHUKO® socket outlet ) 1 Socket outlet ) )
with overvoltage protection with earthing pin
DP (2 P + E) With screwless terminals. Shuttered. DP (2 P + E).
With integrated and external signalling contact. For supply and support of mobile devices via USB-cable.
ISN = 5 kA With USB female connector type A. With electronic
Device protection for technical sensitive equipment short-circuit protection. With electronic overload
such as computer, entertainment electronics and protection. Simultaneous charging via USB connection
building management systems. and use of the SCHUKO® socket outlet. Suitable for the
Effectively reduces overvoltage peaks occurring countries like Poland, Czech Republic.
between the sub-distribution switch board and Rated voltage: 250 V~
SCHUKO® socket outlet. Secondary: 5 V-, +5 % / -5 %
Arrestor test class: classification Type 2 Rated frequency: 50 Hz
Rated voltage: 250 V~ Suitable for: Socket outlet connection
Rated current: 16 A Rated current: 16 A
Protection class (Device): IP 20 Suitable for: USB connection
Rated current: 700 mA
anthracite 2310 EUGL/VA-81-11 2CKA002011A3830 1 Protection class (Device): IP 20, SELV
ivory white 2310 EUGL/VA-82-11 2CKA002011A3831 1 Temperature range (Device): 5 °C to 35 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 53 mm
studio white 2310 EUGL/VA-84-11 2CKA002011A3833 1
Mounting depth: 35 mm
red RAL 3020 2310 EUGL/ 2CKA002011A6257 1/10
VA-12-82-101 anthracite 20 MUCBUSB-81-500 2CKA002017A0893 1
ivory white 20 MUCBUSB-82-500 2CKA002017A0875 1
1) Connecting terminals approved in accordance with VDE 0620-1 as connectors.
studio white 20 MUCBUSB-84-500 2CKA002017A0876 1
SCHUKO® socket outlet 1) No data transfer.
with LED control light 2) Use dust cover 2098 when cleaning the device.
Shuttered.
DP (2 P + E) Shaver socket outlet
With transparent lens. For installation into FM 2gang wall box 3030 and 3031.
LED colour green. Rated voltage: 240 V, +10 % / -10 %
Rated voltage: 250 V~ Output voltage: 115 V, +10 % / -10 %
Rated current: 16 A Secondary: 240 V, +10 % / -10 %
Protection class (Device): IP 20 Rated frequency: 50 Hz - 60 Hz
anthracite 20 EUCBL-81 2CKA002013A5457 10 Rated power: 20 VA
ivory white 20 EUCBL-82 2CKA002013A5284 10
anthracite 2332 UJBS-81 2CKA002130A0297 1
studio white 20 EUCBL-84 2CKA002013A5286 10
ivory 2332 UJBS-82 2CKA002130A0290 1
studio white 2332 UJBS-84 2CKA002130A0292 1
