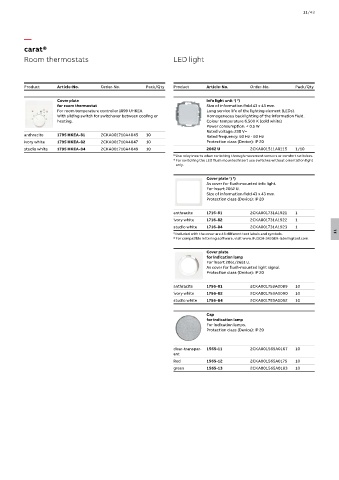

Page 1149 - Din prodcuts 2020

11/43

—
carat®
Room thermostats LED light

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Cover plate Info light unit ) )
1
2
for room thermostat Size of information field 43 x 43 mm.
For room temperature controller 1099 UHKEA. Long service life of the lighting element (LEDs).
With sliding switch for switchover between cooling or Homogeneous backlighting of the information field.
heating. Colour temperature 6,500 K (cold white)
Power consumption: < 0.5 W
Rated voltage: 230 V~
anthracite 1795 HKEA-81 2CKA001710A4045 10 Rated frequency: 50 Hz - 60 Hz
ivory white 1795 HKEA-82 2CKA001710A4047 10 Protection class (Device): IP 20
studio white 1795 HKEA-84 2CKA001710A4049 10 2062 U 2CKA001511A0115 1/10
1) Use relay inserts when switching through movement sensors or comfort switches.
2) For switching the LED flush mounted insert use switches without orientation light
only.

2
Cover plate ) )
1
As cover for flush-mounted info light.
For insert 2062 U.
Size of information field 43 x 43 mm.
Protection class (Device): IP 20
anthracite 1716-81 2CKA001731A1921 1
ivory white 1716-82 2CKA001731A1922 1
studio white 1716-84 2CKA001731A1923 1
1) Included with the cover are 46 different text labels and symbols. 11
2) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.

Cover plate
for indication lamp
For insert 2061/2661 U.
As cover for flush-mounted light signal.
Protection class (Device): IP 20

anthracite 1756-81 2CKA001753A0089 10
ivory white 1756-82 2CKA001753A0090 10
studio white 1756-84 2CKA001753A0092 10

Cap
for indication lamp
For indication lamps.
Protection class (Device): IP 20

clear-transpar- 1565-11 2CKA001565A0167 10
ent
Red 1565-12 2CKA001565A0175 10
green 1565-13 2CKA001565A0183 10
