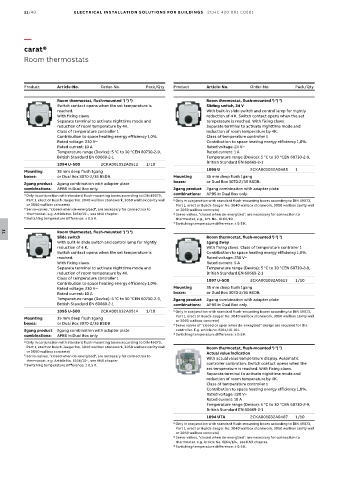

Page 1146 - Din prodcuts 2020

11/40 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
carat®
Room thermostats

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2
1
2
1
3
Room thermostat, flush-mounted ) ) ) Room thermostat, flush-mounted ) ) ) 3
Switch contact opens when the set temperature is Sliding switch, 24 V
reached. With built-in slide switch and control lamp for nightly
With fixing claws. reduction of 4 K. Switch contact opens when the set
Separate terminal to activate nighttime mode and temperature is reached. With fixing claws.
reduction of room temperature by 4K. Separate terminal to activate nighttime mode and
Class of temperature controller 1 reduction of room temperature by 4K.
Contribution to space heating energy efficiency 1,0%. Class of temperature controller 1
Rated voltage: 230 V~ Contribution to space heating energy efficiency 1,0%.
Rated current: 10 A Rated voltage: 24 V~
Temperature range (Device): 5 °C to 30 °CEN 60730-2-9, Rated current: 1 A
British Standard EN 60669-2-1 Temperature range (Device): 5 °C to 30 °CEN 60730-2-9,
British Standard EN 60669-2-1
1094 U-500 2CKA001032A0512 1/10
Mounting 35 mm deep flush 1gang 1096 U 2CKA001032A0485 1
boxes: or Dual Box 3070-2/35 BSDB. Mounting 35 mm deep flush 1gang
boxes: or Dual Box 3070-2/35 BSDB.
2gang product 2gang combination with adapter plate
combinations: APBS in Dual Box only. 2gang product 2gang combination with adapter plate
combinations: APBS in Dual Box only.
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall 1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
or 3060 wallbox concrete) Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
2) Servo-valves, "closed when de-energized", are necessary for connection to or 3060 wallbox concrete)
thermostat. e.g. Article No. 6164/10-, see KNX chapter. 2) Servo-valves, "closed when de-energized", are necessary for connection to
3) Switching temperature difference: ± 0.5 K. thermostat, e.g., Art. No. 6164/10 .
3) Switching temperature difference: ± 0.5 K.
Room thermostat, flush-mounted ) ) )
3
2
1
11
Slide switch Room thermostat, flush-mounted ) ) ) 3
1
2
With built-in slide switch and control lamp for nightly 1gang 2way
reduction of 4 K. With fixing claws. Class of temperature controller 1
Switch contact opens when the set temperature is Contribution to space heating energy efficiency 1,0%.
reached. Rated voltage: 230 V~
With fixing claws. Rated current: 5 A
Separate terminal to activate nighttime mode and Temperature range (Device): 5 °C to 30 °CEN 60730-2-9,
reduction of room temperature by 4K. British Standard EN 60669-2-1
Class of temperature controller 1 1097 U-500 2CKA001032A0513 1/10
Contribution to space heating energy efficiency 1,0%.
Rated voltage: 230 V~ Mounting 35 mm deep flush 1gang
Rated current: 10 A boxes: or Dual Box 3070-2/35 BSDB.
Temperature range (Device): 5 °C to 30 °CEN 60730-2-9, 2gang product 2gang combination with adapter plate
British Standard EN 60669-2-1 combinations: APBS in Dual Box only.
1095 U-500 2CKA001032A0514 1/10 1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
Mounting 35 mm deep flush 1gang or 3060 wallbox concrete)
boxes: or Dual Box 3070-2/35 BSDB. 2) Servo valves of "closed or open when de-energized“ design are required for the
2gang product 2gang combination with adapter plate controller. E.g. article no. 6164/10-101.
combinations: APBS in Dual Box only. 3) Switching temperature difference: ± 0.5 K.
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall Room thermostat, flush-mounted ) ) ) 3
1
2
or 3060 wallbox concrete)
2) Servo-valves, "closed when de-energized", are necessary for connection to Actual value indication
With actual value temperature display. Automatic
thermostat. e.g. Article No. 6164/10-, see KNX chapter.
3) Switching temperature difference: ± 0.5 K. controller calibration. Switch contact opens when the
set temperature is reached. With fixing claws.
Separate terminal to activate nighttime mode and
reduction of room temperature by 4K.
Class of temperature controller 1
Contribution to space heating energy efficiency 1,0%.
Rated voltage: 230 V~
Rated current: 10 A
Temperature range (Device): 5 °C to 30 °CEN 60730-2-9,
British Standard EN 60669-2-1
1094 UTA 2CKA001032A0487 1/10
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
2) Servo-valves, "closed when de-energized", are necessary for connection to
thermostat. e.g. Article No. 6164/10-, see KNX chapter.
3) Switching temperature difference: ± 0.5 K.
