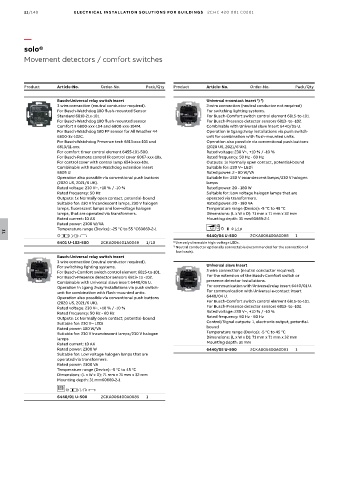

Page 1246 - Din prodcuts 2020

11/140 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
solo®
Movement detectors / comfort switches

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2
Busch-Universal relay switch insert Universal e-contact insert ) )
1
3 wire connection (neutral conductor required). 2-wire connection (neutral conductor not required)
For Busch-Watchdog 180 flush-mounted Sensor For switching lighting systems.
Standard 6810-21x-101. For Busch-Comfort switch control element 6815-to-101.
For Busch-Watchdog 180 flush-mounted sensor For Busch-Presence detector sensors 6813- to -102.
Comfort II 6800-xxx-104 and 6800-xxx-104M. Combinable with Universal slave insert 6440/05 U.
For Busch-Watchdog 180 FP sensor for All Weather 44 Operation in 1gang 2way installations via push switch-
6800-3x-102C. unit for combination with flush-mounted units.
For Busch-Watchdog Presence tech 6813-xxx-101 und Operation also possible via conventional push buttons
6813/11-xxx. (2020 US, 2021/6 UK).
For comfort timer control element 6455-101-500. Rated voltage: 230 V~, +10 % / -10 %
For Busch-Remote control IR control cover 6067-xxx-10x. Rated frequency: 50 Hz - 60 Hz
For control cover with control lamp 6543-xxx-10x. Outputs: 1x Normally open contact, potential-bound
Combinable with Busch-Watchdog extension insert Suitable for: 230 V~ LEDi
6805 U. Rated power: 2 - 80 W/VA
Operation also possible via conventional push buttons Suitable for: 230 V incandescent lamps/230 V halogen
(2020 US, 2021/6 UK). lamps
Rated voltage: 230 V~, +10 % / -10 % Rated power: 20 - 180 W
Rated frequency: 50 Hz Suitable for: Low voltage halogen lamps that are
Outputs: 1x Normally open contact, potential-bound operated via transformers.
Suitable for: 230 V incandescent lamps, 230 V halogen Rated power: 20 - 180 VA
lamps, fluorescent lamps and low-voltage halogen Temperature range (Device): -5 °C to 45 °C
lamps, that are operated via transformers. Dimensions: (L x W x D): 71 mm x 71 mm x 32 mm
Rated current: 10 AX Mounting depth: 31 mm60669-2-1
Rated power: 2300 W/VA
Temperature range (Device): -25 °C to 55 °C60669-2-1
6440/04 U-500 2CKA006400A0088 1
11
6401 U-102-500 2CKA006401A0049 1/10 1) Use only dimmable high-voltage LEDs.
2) Neutral conductor optionally connectable (recommended for the connection of
low loads).
Busch-Universal relay switch insert
3 wire connection (neutral conductor required).
For switching lighting systems. Universal slave insert
For Busch-Comfort switch control element 6815-to-101. 3 wire connection (neutral conductor required).
For Busch-Presence detector sensors 6813- to -102. For the extension of the Busch-Comfort switch or
Combinable with Universal slave insert 6440/05 U. presence detector installations.
Operation in 1gang 2way installations via push switch- For communication with Universal relay insert 6440/01 U.
unit for combination with flush-mounted units. For communication with Universal e-contact insert
Operation also possible via conventional push buttons 6440/04 U.
(2020 US, 2021/6 UK). For Busch-Comfort switch control element 6815-to-101.
Rated voltage: 230 V~, +10 % / -10 % For Busch-Presence detector sensors 6813- to -102.
Rated frequency: 50 Hz - 60 Hz Rated voltage: 230 V~, +10 % / -10 %
Outputs: 1x Normally open contact, potential-bound Rated frequency: 50 Hz - 60 Hz
Suitable for: 230 V~ LEDi Control/Signal outputs: 1, electronic output, potential-
Rated power: 100 W/VA bound
Suitable for: 230 V incandescent lamps/230 V halogen Temperature range (Device): -5 °C to 45 °C
lamps Dimensions: (L x W x D): 71 mm x 71 mm x 32 mm
Rated current: 10 AX Mounting depth: 31 mm
Rated power: 2300 W 6440/05 U-500 2CKA006400A0091 1
Suitable for: Low voltage halogen lamps that are
operated via transformers.
Rated power: 2300 VA
Temperature range (Device): -5 °C to 45 °C
Dimensions: (L x W x D): 71 mm x 71 mm x 32 mm
Mounting depth: 31 mm60669-2-1
LEDi
6440/01 U-500 2CKA006400A0085 1
