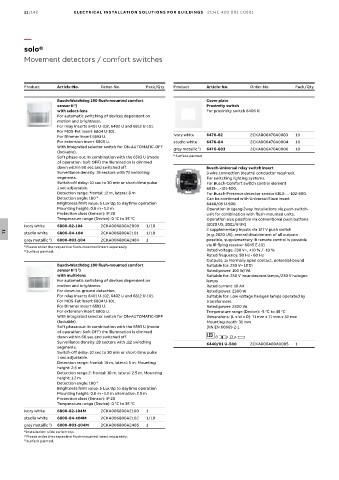

Movement detectors / comfort switches

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Busch-Watchdog 180 flush-mounted comfort Cover plate
sensor II ) Proximity switch
1
with select-lens For proximity switch 6406 U.
For automatic switching of devices dependent on
motion and brightness.
For relay inserts 6401 U-102, 6402 U and 6812 U-101.
For MOS-Fet insert 6804 U-101.
For Dimmer insert 6593 U. ivory white 6476-82 2CKA006470A0003 10
For extension insert 6805 U. studio white 6476-84 2CKA006470A0004 10
With integrated selector switch for ON-AUTOMATIC-OFF grey metallic ) 1 6476-803 2CKA006470A0006 10
(lockable).
Soft phase-out: In combination with the 6593 U (mode 1) Surface painted.
of operation: Soft OFF) the illumination is dimmed
down within 60 sec and switched off. Busch-Universal relay switch insert
Surveillance density: 18 sectors with 72 switching 3 wire connection (neutral conductor required).
segments. For switching lighting systems.
Switch-off delay: 10 sec to 30 min or short-time pulse For Busch-Comfort switch control element
1 sec adjustable. 6815-...-101-500.
Detection range: frontal: 12 m, lateral: 8 m For Busch-Presence detector sensor 6813-…-102-500.
Detection angle: 180 ° Can be combined with Universal-Slave insert
Brightness limit value: 5 Lux Up to daytime operation 6440/05 U-500.
Mounting height: 0.8 m - 1.2 m Operation in 1gang 2way installations via push switch-
Protection class (Sensor): IP 20 unit for combination with flush-mounted units.
Temperature range (Device): 0 °C to 35 °C Operation also possible via conventional push buttons
ivory white 6800-82-104 2CKA006800A2099 1/10 (2020 US, 2021/6 UK).
2 supplementary inputs via 127 V push switch
studio white 6800-84-104 2CKA006800A2101 1/10 (e.g. 2020 US), central disablement of all outputs
11
grey metallic ) 6800-803-104 2CKA006800A2484 1 possible, supplementary IR remote control is possible
2
via IR flying receiver 6045 E-101
1) Please order the respective flush-mounted insert separately.
2) Surface painted. Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz - 60 Hz
Outputs: 1x Normally open contact, potential-bound
Busch-Watchdog 180 flush-mounted comfort Suitable for: 230 V~ LEDi
sensor II ) ) Rated power: 100 W/VA
2
1
with multi-lens Suitable for: 230 V incandescent lamps/230 V halogen
For automatic switching of devices dependent on lamps
motion and brightness. Rated current: 10 AX
For down-to-ground detection. Rated power: 2300 W
For relay inserts 6401 U-102, 6402 U and 6812 U-101. Suitable for: Low voltage halogen lamps operated by
For MOS-Fet insert 6804 U-101. transformers.
For Dimmer insert 6593 U. Rated power: 2300 VA
For extension insert 6805 U. Temperature range (Device): -5 °C to 45 °C
With integrated selector switch for ON-AUTOMATIC-OFF Dimensions: (L x W x D): 71 mm x 71 mm x 32 mm
(lockable). Mounting depth: 31 mm
Soft phase-out: In combination with the 6593 U (mode DIN EN 60669-2-1
of operation: Soft OFF) the illumination is dimmed
down within 60 sec and switched off. LEDi
Surveillance density: 28 sectors with 112 switching 6440/01 U-500 2CKA006400A0085 1
segments.
Switch-off delay: 10 sec to 30 min or short-time pulse
1 sec adjustable.
Detection range: frontal: 15 m, lateral: 5 m, Mounting
height: 2.5 m
Detection range 2: frontal: 10 m, lateral: 2.5 m, Mounting
height: 1.2 m
Detection angle: 180 °
Brightness limit value: 5 Lux Up to daytime operation
Mounting height: 0.8 m - 1.2 m alternative: 2.5 m
Protection class (Sensor): IP 20
Temperature range (Device): 0 °C to 35 °C
ivory white 6800-82-104M 2CKA006800A2100 1
studio white 6800-84-104M 2CKA006800A2102 1/10
grey metallic ) 6800-803-104M 2CKA006800A2485 1
3
1) installation: slide switch top.
2) Please order the respective flush-mounted insert separately.
3) Surface painted.
