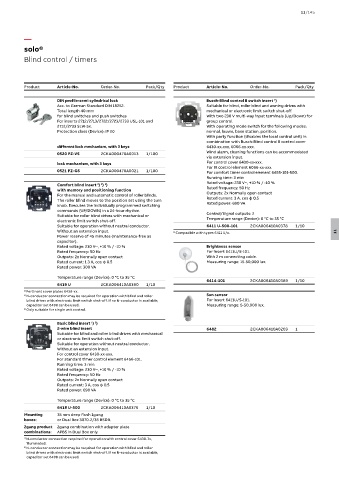

solo®
Blind control / timers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

DIN profile-semi cylindrical lock Busch-Blind control II switch insert ) 1
Acc. to German Standard DIN 18252. Suitable for blind, roller blind and awning drives with
Total length 40 mm mechanical or electronic limit switch shut-off.
for blind switches and push switches With two 230 V multi-way input terminals (Up/Down) for
For inserts 2712/2713/2722/2723/2733 USL-101 and group control.
2712/2733 SLW-5x. With operating mode switch for the following modes:
Protection class (Device): IP 20 normal, louvre, base station, position.
With party function (disables the local control unit) in
combination with Busch-Blind control II control cover
different lock mechanism, with 3 keys 6430-xx-xxx, 6066-xx-xxx.
0520 PZ-VS 2CKA000470A0013 1/100 Wind alarm, cleaning functions can be accommodated
via extension input.
lock mechanism, with 3 keys For control cover 6430-xx-xxx.
For IR control element 6066-xx-xxx.
0521 PZ-GS 2CKA000470A0021 1/100 For comfort timer control element 6455-101-500.
Running time: 3 min
Rated voltage: 230 V~, +10 % / -10 %
2
3
Comfort blind insert ) ) )
1
with memory and positioning function Rated frequency: 50 Hz
For the manual and automatic control of roller blinds. Outputs: 2x Normally open contact
The roller blind moves to the position set using the turn Rated current: 3 A, cos φ 0.5
knob. Executes the individually programmed switching Rated power: 690 VA
commands (UP/DOWN) in a 24-hour rhythm.
Suitable for roller blind drives with mechanical or Control/Signal outputs: 2
electronic limit switch shut-off. Temperature range (Device): 0 °C to 35 °C
Suitable for operation without neutral conductor. 6411 U-500-101 2CKA006410A0378 1/10
Without an extension input. 1) Compatible with types 6411 U/x. 11
Power reserve of 45 minutes (maintenance-free as
capacitor).
Rated voltage: 230 V~, +10 % / -10 % Brightness sensor
Rated frequency: 50 Hz For insert 6411U/S-101.
Outputs: 2x Normally open contact With 2 m connecting cable.
Rated current: 1.3 A, cos φ 0.5 Measuring range: 15-50,000 lux.
Rated power: 300 VA
Temperature range (Device): 0 °C to 35 °C
6414-101 2CKA006410A0389 1/10
6419 U 2CKA006410A0390 1/10
1) Pertinent cover plates 6436-xx.
2) N-conductor connection may be required for operation with blind and roller Sun sensor
blind drives with electronic limit switch shut-off. If no N-conductor is available, For insert 6411U/S-101.
capacitor set 6498 can be used. Measuring range: 5-50,000 lux.
3) Only suitable for single unit control.
Basic blind insert ) )
2
1
2-wire blind insert 6482 2CKA006410A0203 1
Suitable for blind and roller blind drives with mechanical
or electronic limit switch shut-off.
Suitable for operation without neutral conductor.
Without an extension input.
For control cover 6430-xx-xxx.
For standard timer control element 6456-101.
Running time: 3 min
Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz
Outputs: 2x Normally open contact
Rated current: 3 A, cos φ 0.5
Rated power: 690 VA
Temperature range (Device): 0 °C to 35 °C
6418 U-500 2CKA006410A0376 1/10
Mounting 35 mm deep flush 1gang
boxes: or Dual Box 3070-2/35 BSDB.
2gang product 2gang combination with adapter plate
combinations: APBS in Dual Box only.
1) N-conductor connection required for operation with control cover 6430-7x,
illuminated.
2) N-conductor connection may be required for operation with blind and roller
blind drives with electronic limit switch shut-off. If no N-conductor is available,
capacitor set 6498 can be used.
