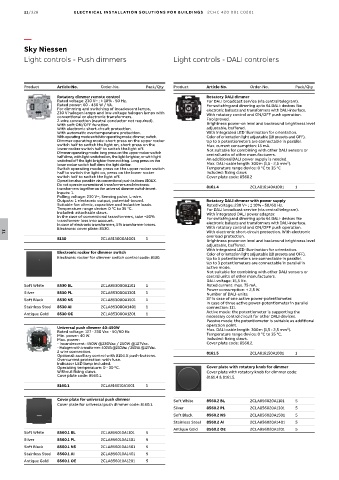

11/328 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Sky Niessen
Light controls - Push dimmers Light controls - DALI controlers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Rotatory dimmer remote control Rotatory DALI dimmer
Rated voltage: 230 V~ ; ± 10% - 50 Hz. For DALI broadcast service (via central telegram).
Rated power: 60 - 450 W / VA. For switching and dimming up to 64 DALI- devices like
For dimming and switching of incadescent lamps, electronic ballasts and transformers with DALI-interface.
230 V halogen lamps and low-voltage halogen lamps with With rotatory control and ON/OFF push operation.
conventional or electronic transformers.
2-wire connection (neutral conductor not required). Fool proved.
With soft ON/OFF function. Brightness power-on level and backround brightness level
With electronic short-circuit protection. adjustable, buffered.
With automatic overtemperature protection. With integrated LED illumination for orientation.
With operating mode switch for operating mode: dimmer, switch. Color of orientation light adjustable (18 presets and OFF).
Dimmer operating mode: short press on the upper rocker Up to 5 potentiometers are connectable in parallel.
switch half to switch the light on, short press on the Max. current consumption: 15 mA.
lower rocker switch half to switch the light off. Not suitable for combining with other DALI sensors or
Dimmer operating mode: long press on the upper rocker switch
half dims, with light switched on, the light brighter, or with light central units of other manufacturers.
switched off the light brighter from nothing. Long press on the An additional DALI power supply is needed.
lower rocker switch half dims the light darker. Max. DALI-cable length: 300 m (1,5 - 2,5 mm²).
Switch operating mode: press on the upper rocker switch Temperature range device: 0 °C to 35 °C
half to switch the light on, press on the lower rocker Included: fixing claws
switch half to switch the light off. Cover plate code: 8560.2
Operation also possible via conventional push buttons 8104.X.
Do not operate conventional transformers and electronic
transformers together on the universal dimmer switch insert. 8161.4 2CLA816140A1001 1
Inputs: 1.
Polling voltage: 230 V~, Sensing pulse, L-wire.
Outputs: 1 electronic output, potential-bound. Rotatory DALI dimmer with power supply
Suitable for: ohmic, capacitive and inductive loads. Rated voltage: 230 V~ ; ± 10% - 50/60 Hz.
Temperature range device: 0 °C to 35 °C. For DALI broadcast service (via central telegram).
Included: attachable claws. With integrated DALI power adaptor.
In the case of conventional transformers, take ~20% For switching and dimming up to 64 DALI- devices like
transformer loss into account.
In case of electronic transformers, 5 % transformer losses. electronic ballasts and transformers with DALI-interface.
Electronic cover plate: 8530. With rotatory control and ON/OFF push operation.
With electronic short-circuit protection. With electronic
11
overload protection.
8130 2CLA813000A1001 1 Brightness power-on level and backround brightness level
adjustable, buffered.
With integrated LED illumination for orientation.
Electronic rocker for dimmer switch Color of orientation light adjustable (18 presets and OFF).
Electronic rocker for dimmer switch control code: 8130. Up to 5 potentiometers are connectable in parallel.
Up to 3 potentiometers are connectable in parallel in
active mode.
Not suitable for combining with other DALI sensors or
central units of other manufacturers.
DALI-voltage: 15,5 V=.
Soft White 8530 BL 2CLA853000A1101 1 Rated current: max. 75 mA.
Power consumption: < 2,5 W.
Silver 8530 PL 2CLA853000A1301 1 Number of DALI-units:
Soft Black 8530 NS 2CLA853000A1501 1 37 in case of one active power-potentiometer.
In case of three active power-potentiometer in parallel
Stainless Steel 8530 AI 2CLA853000A1401 1 connection: 111.
Antique Gold 8530 OE 2CLA853000A1201 1 Active mode: the potentiometer is supporting the
necessary control circuit for other DALI-devices.
Passive mode: the potentiometer is suitable as additional
operation point.
Universal push dimmer 40-450W Max. DALI-cable length: 300 m (1,5 - 2,5 mm²).
Rated voltage: 127 - 230 Vac - 50/60 Hz
Min. power: 40 W. Temperature range device: 0 °C to 35 °C.
Max. power: Included: fixing claws.
- Incandescent: 450W @230Vac / 250W @127Vac. Cover plate code: 8560.2.
- Halogen with transformer: 400VA @230Vac / 250VA @127Vac.
2 wire connection. 8161.5 2CLA816150A1001 1
Optional: auxiliary control with 8104.X push-buttons.
Overcurrent protection: with fuse.
Indicator LED lamp included.
Operating temperature: 0 - 30 ºC. Cover plate with rotatory knob for dimmer
Without fixing claws. Cover plate with rotatory knob for dimmer code:
Cove plate code: 8560.1. 8161.4 & 8161.5.
8160.1 2CLA816010A1001 1
Cover plate for universal push dimmer Soft White 8560.2 BL 2CLA856020A1101 5
Cover plate for universal push dimmer code: 8160.1.
Silver 8560.2 PL 2CLA856020A1301 5
Soft Black 8560.2 NS 2CLA856020A1501 5
Stainless Steel 8560.2 AI 2CLA856020A1401 5
Antique Gold 8560.2 OE 2CLA856020A1201 5
Soft White 8560.1 BL 2CLA856010A1101 5
Silver 8560.1 PL 2CLA856010A1301 5
Soft Black 8560.1 NS 2CLA856010A1501 5
Stainless Steel 8560.1 AI 2CLA856010A1401 5
Antique Gold 8560.1 OE 2CLA856010A1201 5
