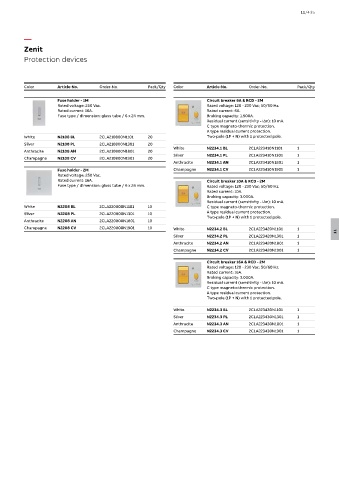

Page 1541 - Din prodcuts 2020

11/435

—
Zenit
Protection devices

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Fuse holder - 1M Circuit breaker 6A & RCD - 2M
Rated voltage: 250 Vac. Rated voltage: 120 - 230 Vac; 50/60 Hz.
Rated current: 16A. Rated current: 6A.
Fuse type / dimension: glass tube / 6 x 24 mm. Braking capacity: 1.500A.
Residual current (sensitivity - I∆n): 10 mA.
C type magneto-thermic protection.
A type residual current protection.
White N2108 BL 2CLA210800N1101 20 Two-pole (1P + N) with 1 protected pole.
Silver N2108 PL 2CLA210800N1301 20
White N2234.1 BL 2CLA223410N1101 1
Anthracite N2108 AN 2CLA210800N1801 20
Silver N2234.1 PL 2CLA223410N1301 1
Champagne N2108 CV 2CLA210800N1901 20
Anthracite N2234.1 AN 2CLA223410N1801 1
Fuse holder - 2M Champagne N2234.1 CV 2CLA223410N1901 1
Rated voltage: 250 Vac.
Rated current: 16A. Circuit breaker 10A & RCD - 2M
Fuse type / dimension: glass tube / 6 x 24 mm. Rated voltage: 120 - 230 Vac; 50/60 Hz.
Rated current: 10A.
Braking capacity: 3.000A.
Residual current (sensitivity - I∆n): 10 mA.
White N2208 BL 2CLA220800N1101 10 C type magneto-thermic protection.
Silver N2208 PL 2CLA220800N1301 10 A type residual current protection.
Two-pole (1P + N) with 1 protected pole.
Anthracite N2208 AN 2CLA220800N1801 10
Champagne N2208 CV 2CLA220800N1901 10 White N2234.2 BL 2CLA223420N1101 1 11
Silver N2234.2 PL 2CLA223420N1301 1
Anthracite N2234.2 AN 2CLA223420N1801 1
Champagne N2234.2 CV 2CLA223420N1901 1

Circuit breaker 16A & RCD - 2M
Rated voltage: 120 - 230 Vac; 50/60 Hz.
Rated current: 16A.
Braking capacity: 3.000A.
Residual current (sensitivity - I∆n): 10 mA.
C type magneto-thermic protection.
A type residual current protection.
Two-pole (1P + N) with 1 protected pole.
White N2234.3 BL 2CLA223430N1101 1
Silver N2234.3 PL 2CLA223430N1301 1
Anthracite N2234.3 AN 2CLA223430N1801 1
Champagne N2234.3 CV 2CLA223430N1901 1
