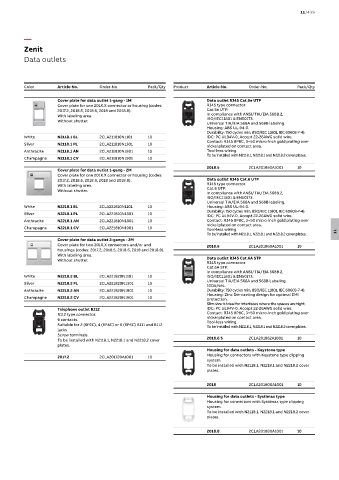

11/439

—
Zenit
Data outlets

Color Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Cover plate for data outlet 1-gang - 1M Data outlet RJ45 Cat.5e UTP
Cover plate for one 201X.X connector or housing (codes: RJ45 type connector.
2017.2, 2018.5, 2018.6, 2018 and 2018.8). Cat.5e UTP.
With labeling area. In compliance with ANSI/TIA/EIA 568B.2,
Without shutter. ISO/IEC11801 & EN50173.
Universal TIA/EIA 568A and 568B labeling.
Housing: ABS UL-94-0.
Durability: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4).
White N2118.1 BL 2CLA211810N1101 10 IDC: PC UL94V-0, Accept 22-26AWG solid wire.
Contact: RJ45 8P8C, 3~50 micro-inch gold plating over
Silver N2118.1 PL 2CLA211810N1301 10 nickel plated on contact area.
Anthracite N2118.1 AN 2CLA211810N1801 10 Tool-less wiring.
To be installed with N2118.1, N2218.1 and N2218.2 cover plates.
Champagne N2118.1 CV 2CLA211810N1901 10
2018.5 2CLA201850A1001 10
Cover plate for data outlet 1-gang - 2M
Cover plate for one 201X.X connector or housing (codes:
2017.2, 2018.5, 2018.6, 2018 and 2018.8). Data outlet RJ45 Cat.6 UTP
With labeling area. RJ45 type connector.
Without shutter. Cat.6 UTP.
In compliance with ANSI/TIA/EIA 568B.2,
ISO/IEC11801 & EN50173.
Universal TIA/EIA 568A and 568B labeling.
White N2218.1 BL 2CLA221810N1101 10 Housing: ABS UL-94-0.
Durability: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4).
Silver N2218.1 PL 2CLA221810N1301 10
IDC: PC UL94V-0, Accept 22-26AWG solid wire.
Anthracite N2218.1 AN 2CLA221810N1801 10 Contact: RJ45 8P8C, 3~50 micro-inch gold plating over
nickel plated on contact area.
Champagne N2218.1 CV 2CLA221810N1901 10 Tool-less wiring.
To be installed with N2118.1, N2218.1 and N2218.2 cover plates. 11
Cover plate for data outlet 2-gangs - 2M
Cover plate for two 201X.X connectors and/or and 2018.6 2CLA201860A1001 10
housings (codes: 2017.2, 2018.5, 2018.6, 2018 and 2018.8).
With labeling area.
Without shutter. Data outlet RJ45 Cat.6A STP
RJ45 type connector.
Cat.6A STP.
In compliance with ANSI/TIA/EIA 568B.2,
White N2218.2 BL 2CLA221820N1101 10 ISO/IEC11801 & EN50173.
Universal TIA/EIA 568A and 568B Labeling.
Silver N2218.2 PL 2CLA221820N1301 10
10Gb/sec.
Anthracite N2218.2 AN 2CLA221820N1801 10 Durability: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4).
Housing: Zinc Die-casting design for optimal EMI
Champagne N2218.2 CV 2CLA221820N1901 10 protection.
Slim size is ideal for interfaces where the spaces are tight.
Telephone outlet RJ12 IDC: PC UL94V-0, Accept 22-26AWG solid wire.
RJ12 type connector. Contact: RJ45 8P8C, 3~50 micro-inch gold plating over
6 contacts. nickel plated on contact area.
Tool-less wiring.
Suitable for 2 (6P2C), 4 (6P4C) or 6 (6P6C) RJ11 and RJ12 To be installed with N2118.1, N2218.1 and N2218.2 cover plates.
jacks.
Screw terminals.
To be installed with N2118.1, N2218.1 and N2218.2 cover 2018.6 S 2CLA201862A1001 10
plates.
Housing for data outlets - Keystone type
2017.2 2CLA201720A1001 10 Housing for connectors with Keystone type clipping
system.
To be installed with N2118.1, N2218.1 and N2218.2 cover
plates.
2018 2CLA201800A1001 10
Housing for data outlets - Systimax type
Housing for connectors with Systimax type clipping
system.
To be installed with N2118.1, N2218.1 and N2218.2 cover
plates.

2018.8 2CLA201880A1001 10
