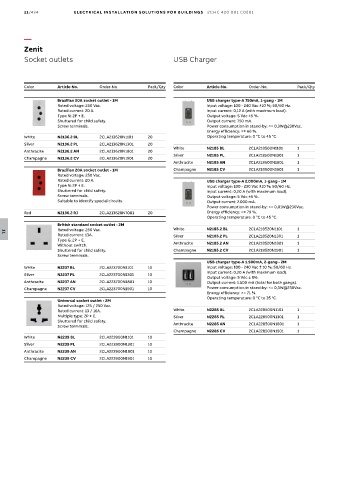

Page 1540 - Din prodcuts 2020

11/434 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit
Socket outlets USB Charger

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Brazilian 20A socket outlet - 1M USB charger type-A 750mA, 1-gang - 1M
Rated voltage: 250 Vac. Input voltage: 100 - 240 Vac ±10 %; 50/60 Hz.
Rated current: 20 A. Input current: 0,12 A (with maximum load).
Type N: 2P + E. Output voltage: 5 Vdc ±5 %.
Shuttered for child safety. Output current: 750 mA.
Screw terminals. Power consumption in stand-by: <= 0,3W@230Vac.
Energy efficiency: >= 66 %.
White N2136.2 BL 2CLA213620N1101 20 Operating temperature: 0 °C to 45 °C.
Silver N2136.2 PL 2CLA213620N1301 20
White N2185 BL 2CLA218500N1101 1
Anthracite N2136.2 AN 2CLA213620N1801 20
Silver N2185 PL 2CLA218500N1301 1
Champagne N2136.2 CV 2CLA213620N1901 20
Anthracite N2185 AN 2CLA218500N1801 1
Brazilian 20A socket outlet - 1M Champagne N2185 CV 2CLA218500N1901 1
Rated voltage: 250 Vac.
Rated current: 20 A. USB charger type-A 2.000mA, 1-gang - 1M
Type N: 2P + E. Input voltage: 100 - 230 Vac ±10 %; 50/60 Hz.
Shuttered for child safety. Input current: 0,20 A (with maximum load).
Screw terminals. Output voltage: 5 Vdc ±5 %.
Suitable to identify special circuits. Output current: 2.000 mA.
Power consumption in stand-by: <= 0,01W@230Vac.
Red N2136.2 RJ 2CLA213620N7001 20 Energy efficiency: >= 79 %.
Operating temperature: 0 °C to 45 °C.
British standard socket outlet - 2M
Rated voltage: 250 Vac. White N2185.2 BL 2CLA218520N1101 1
Rated current: 13A. Silver N2185.2 PL 2CLA218520N1301 1
11
Type G: 2P + E.
Without switch. Anthracite N2185.2 AN 2CLA218520N1801 1
Shuttered for child safety. Champagne N2185.2 CV 2CLA218520N1901 1
Screw terminals.
USB charger type-A 1.500mA, 2-gang - 2M
White N2237 BL 2CLA223700N1101 10 Input voltage: 100 - 240 Vac ± 10 %; 50/60 Hz.
Input current: 0,20 A (with maximum load).
Silver N2237 PL 2CLA223700N1301 10
Output voltage: 5 Vdc ± 5%.
Anthracite N2237 AN 2CLA223700N1801 10 Output current: 1.500 mA (total for both gangs).
Champagne N2237 CV 2CLA223700N1901 10 Power consumption in stand-by: <= 0,3W@230Vac.
Energy efficiency: >= 71 %.
Operating temperature: 0 °C to 35 °C.
Universal socket outlet - 2M
Rated voltage: 125 / 250 Vac.
Rated current: 13 / 16A. White N2285 BL 2CLA228500N1101 1
Multiple type: 2P + E. Silver N2285 PL 2CLA228500N1301 1
Shuttered for child safety.
Screw terminals. Anthracite N2285 AN 2CLA228500N1801 1
Champagne N2285 CV 2CLA228500N1901 1
White N2239 BL 2CLA223900N1101 10
Silver N2239 PL 2CLA223900N1301 10
Anthracite N2239 AN 2CLA223900N1801 10
Champagne N2239 CV 2CLA223900N1901 10
