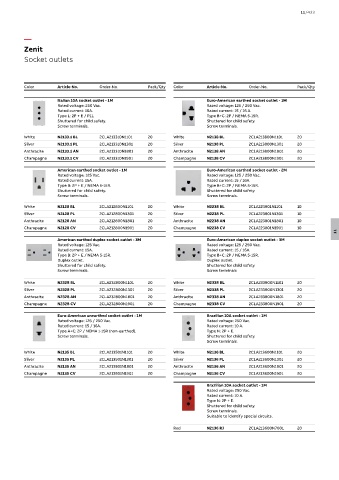

Page 1539 - Din prodcuts 2020

11/433

—
Zenit
Socket outlets

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Italian 10A socket outlet - 1M Euro-American earthed socket outlet - 1M
Rated voltage: 250 Vac. Rated voltage: 125 / 250 Vac.
Rated current: 10A. Rated current: 15 / 16 A.
Type L: 2P + E / P11. Type B+C: 2P / NEMA 5-15R.
Shuttered for child safety. Shuttered for child safety.
Screw terminals. Screw terminals.

White N2133.1 BL 2CLA213310N1101 20 White N2138 BL 2CLA213800N1101 20
Silver N2133.1 PL 2CLA213310N1301 20 Silver N2138 PL 2CLA213800N1301 20
Anthracite N2133.1 AN 2CLA213310N1801 20 Anthracite N2138 AN 2CLA213800N1801 20
Champagne N2133.1 CV 2CLA213310N1901 20 Champagne N2138 CV 2CLA213800N1901 20

American earthed socket outlet - 1M Euro-American earthed socket outlet - 2M
Rated voltage: 125 Vac. Rated voltage: 125 / 250 Vac.
Rated current: 15A. Rated current: 15 / 16A.
Type B: 2P + E / NEMA 5-15R. Type B+C: 2P / NEMA 5-15R.
Shuttered for child safety. Shuttered for child safety.
Screw terminals. Screw terminals.

White N2128 BL 2CLA212800N1101 20 White N2238 BL 2CLA223801N1101 10
Silver N2128 PL 2CLA212800N1301 20 Silver N2238 PL 2CLA223801N1301 10
Anthracite N2128 AN 2CLA212800N1801 20 Anthracite N2238 AN 2CLA223801N1801 10
Champagne N2128 CV 2CLA212800N1901 20 Champagne N2238 CV 2CLA223801N1901 10
11
American earthed duplex socket outlet - 3M Euro-American duplex socket outlet - 3M
Rated voltage: 125 Vac. Rated voltage: 125 / 250 Vac.
Rated current: 15A. Rated current: 15 / 16A.
Type B: 2P + E / NEMA 5-15R. Type B+C: 2P / NEMA 5-15R.
Duplex outlet. Duplex outlet.
Shuttered for child safety. Shuttered for child safety.
Screw terminals. Screw terminals
White N2328 BL 2CLA232800N1101 20 White N2338 BL 2CLA233800N1101 20
Silver N2328 PL 2CLA232800N1301 20 Silver N2338 PL 2CLA233800N1301 20
Anthracite N2328 AN 2CLA232800N1801 20 Anthracite N2338 AN 2CLA233800N1801 20
Champagne N2328 CV 2CLA232800N1901 20 Champagne N2338 CV 2CLA233800N1901 20

Euro-American unearthed socket outlet - 1M Brazilian 10A socket outlet - 1M
Rated voltage: 125 / 250 Vac. Rated voltage: 250 Vac.
Rated current: 15 / 16A. Rated current: 10 A.
Type A+C: 2P / NEMA 1-15R (non-earthed). Type N: 2P + E.
Screw terminals. Shuttered for child safety.
Screw terminals.

White N2135 BL 2CLA213501N1101 20 White N2136 BL 2CLA213600N1101 20
Silver N2135 PL 2CLA213501N1301 20 Silver N2136 PL 2CLA213600N1301 20
Anthracite N2135 AN 2CLA213501N1801 20 Anthracite N2136 AN 2CLA213600N1801 20
Champagne N2135 CV 2CLA213501N1901 20 Champagne N2136 CV 2CLA213600N1901 20

Brazilian 10A socket outlet - 1M
Rated voltage: 250 Vac.
Rated current: 10 A.
Type N: 2P + E.
Shuttered for child safety.
Screw terminals.
Suitable to identify special circuits.
Red N2136 RJ 2CLA213600N7001 20
