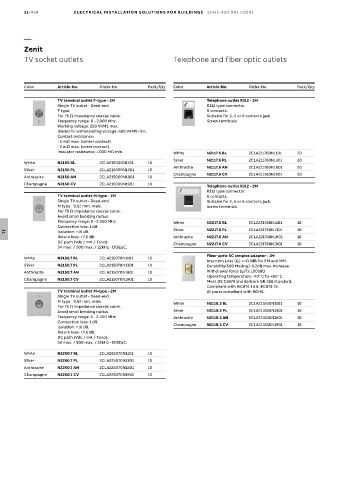

11/438 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit
TV socket outlets Telephone and fiber optic outlets

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

TV terminal outlet F-type - 1M Telephone outlet RJ12 - 1M
Single TV outlet - Dead-end. RJ12 type connector.
F type. 6 contacts.
For 75 Ω impedance coaxial cable. Suitable for 2, 4 or 6 contscts jack.
Frequency range: 0 - 2.000 Mhz. Screw terminals.
Working voltage: 250 VRMS max.
Dielectric withstanding voltage: 500 VRMS min.
Contact resistance:
- 5 mΩ max. (center contact).
- 2 mΩ max. (outer contact).
Insulator resistance: 1.000 MΩ min. White N2117.6 BL 2CLA211760N1101 20
Silver N2117.6 PL 2CLA211760N1301 20
White N2150 BL 2CLA215000N1101 10
Anthracite N2117.6 AN 2CLA211760N1801 20
Silver N2150 PL 2CLA215000N1301 10
Champagne N2117.6 CV 2CLA211760N1901 20
Anthracite N2150 AN 2CLA215000N1801 10
Champagne N2150 CV 2CLA215000N1901 10
Telephone outlet RJ12 - 2M
RJ12 type connector.
TV terminal outlet M-type - 1M 6 contacts.
Single TV outlet - Dead-end. Suitable for 2, 4 or 6 contscts jack.
M type - 9,52 mm. male. Screw terminals.
For 75 Ω impedance coaxial cable.
Avoid small bending radius.
Frequency range: 5 - 2.400 Mhz. White N2217.6 BL 2CLA221760N1101 10
Connection loss: 1 dB.
Isolation: >16 dB. Silver N2217.6 PL 2CLA221760N1301 10
11
Return loss: >7,6 dB. Anthracite N2217.6 AN 2CLA221760N1801 10
DC path (Vdc / mA / Tono): Champagne N2217.6 CV 2CLA221760N1901 10
34 max. / 500 max. / 22kHz - DiSEqC.
Fiber optic SC simplex adapter - 1M
White N2150.7 BL 2CLA215070N1101 10
Insertion Loss (IL) <=0.3dB for SM and MM.
Silver N2150.7 PL 2CLA215070N1301 10 Durability(500 Mating): 0.2dB max. increase.
Anthracite N2150.7 AN 2CLA215070N1801 10 Withdrawal force (g/f): 100300.
Operating temperature: -40° C to +85° C.
Champagne N2150.7 CV 2CLA215070N1901 10
Meet JIS C5974 and Bellcore GR-326 standard.
Compliant with IEC874-14 & IEC874-19.
TV terminal outlet M-type - 2M All parts compliant with ROHS.
Single TV outlet - Dead-end.
M type - 9,52 mm. male. White N2118.3 BL 2CLA211830N1101 10
For 75 Ω impedance coaxial cable.
Avoid small bending radius. Silver N2118.3 PL 2CLA211830N1301 10
Frequency range: 5 - 2.400 Mhz. Anthracite N2118.3 AN 2CLA211830N1801 10
Connection loss: 1 dB.
Isolation: >16 dB. Champagne N2118.3 CV 2CLA211830N1901 10
Return loss: >7,6 dB.
DC path (Vdc / mA / Tono):
34 max. / 500 max. / 22kHz - DiSEqC.
White N2250.7 BL 2CLA225070N1101 10
Silver N2250.7 PL 2CLA225070N1301 10
Anthracite N2250.7 AN 2CLA225070N1801 10
Champagne N2250.7 CV 2CLA225070N1901 10
