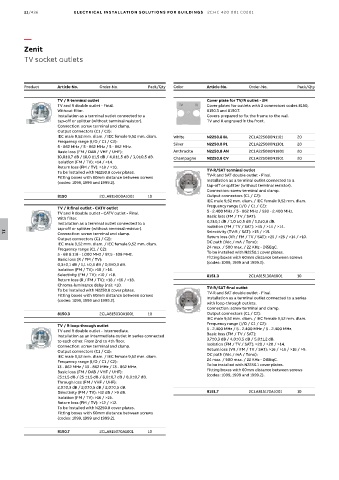

11/436 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—
Zenit
TV socket outlets
Product Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty
TV / R terminal outlet Cover plate for TV/R outlet - 2M
TV and R double outlet - Final. Cover plates for outlets with 2 connectors codes 8150,
Without filter. 8150.3 and 8150.7.
Installation as a terminal outlet connected to a Covers prepared to fix the frame to the wall.
tap-off or splitter (without terminal resistor). TV and R engraved in the front.
Connection: screw terminal and clamp.
Output connectors (C1 / C2):
IEC male 9,52 mm. diam. / IEC female 9,52 mm. diam. White N2250.8 BL 2CLA225080N1101 20
Frequency range (I/O / C1 / C2):
5 - 862 MHz / 5 - 862 MHz / 5 - 862 MHz. Silver N2250.8 PL 2CLA225080N1301 20
Basic loss (FM / DAB / VHF / UHF): Anthracite N2250.8 AN 2CLA225080N1801 20
10,0±0,7 dB / 10,0 ±1,5 dB / 4,0±1,5 dB / 3,0±0,5 dB. Champagne N2250.8 CV 2CLA225080N1901 20
Isolation (FM / TV): >14 / >14.
Return loss (FM / TV): >18 / >10.
To be installed with N2250.8 cover plates. TV-R/SAT terminal outlet
Fitting boxes with 60mm distance between screws TV-R and SAT double outlet - Final.
(codes: 1099, 1999 and 1999.2). Installation as a terminal outlet connected to a
tap-off or splitter (without terminal resistor).
Connection: screw terminal and clamp.
8150 2CLA815000A1001 10 Output connectors (C1 / C2):
IEC male 9,52 mm. diam. / IEC female 9,52 mm. diam.
TV / R final outlet - CATV outlet Frequency range (I/O / C1 / C2):
TV and R double outlet - CATV outlet - Final. 5 - 2.400 MHz / 5 - 862 MHz / 930 - 2.400 MHz.
With filter. Basic loss (FM / TV / SAT):
Installation as a terminal outlet connected to a 0,2±0,1 dB / 1,0 ±0,5 dB / 1,2±0,6 dB.
tap-off or splitter (without terminal resistor). Isolation (FM / TV / SAT): >45 / >14 / >14.
Connection: screw terminal and clamp. Selectivity (TV-R / SAT): >15 / >15.
11
Output connectors (C1 / C2): Return loss (VR / FM / TV / SAT): >25 / >25 / >14 / >10.
IEC male 9,52 mm. diam. / IEC female 9,52 mm. diam. DC path (Vdc / mA / Tono):
Frequency range (C1 / C2): 24 max. / 500 max. / 22 KHz - DiSEqC.
5 - 68 & 118 - 1.000 MHz / 87,5 - 108 MHz. To be installed with N2250.1 cover plates.
Basic loss (R / FM / TV): Fitting boxes with 60mm distance between screws
0,3±0,1 dB / 1,1 ±0,3 dB / 0,9±0,3 dB. (codes: 1099, 1999 and 1999.2).
Isolation (FM / TV): >18 / >16.
Selectivity (FM / TV): >10 / >18. 8151.3 2CLA815130A1001 10
Return loss (R / FM / TV): >18 / >16 / >18.
Chroma-luminance delay (ns): <10.
To be installed with N2250.8 cover plates. TV-R/SAT final outlet
Fitting boxes with 60mm distance between screws TV-R and SAT double outlet - Final.
(codes: 1099, 1999 and 1999.2). Installation as a terminal outlet connected to a series
with loop-through outlets.
Connection: screw terminal and clamp.
8150.3 2CLA815030A1001 10 Output connectors (C1 / C2):
IEC male 9,52 mm. diam. / IEC female 9,52 mm. diam.
Frequency range (I/O / C1 / C2):
TV / R loop-through outlet
TV and R double outlet - Intermediate. 5 - 2.400 MHz / 5 - 2.400 MHz / 5 - 2.400 MHz.
Installation as an intermediate outlet in series connected Basic loss (FM / TV / SAT):
to each other. From 2nd to 4th floor. 3,7±0,3 dB / 4,0±0,5 dB / 5,0±1,2 dB.
Connection: screw terminal and clamp. Isolation (FM / TV / SAT): >20 / >20 / >14.
Output connectors (C1 / C2): Return loss (VR / FM / TV / SAT): >16 / >16 / >16 / >9.
IEC male 9,52 mm. diam. / IEC female 9,52 mm. diam. DC path (Vdc / mA / Tono):
Frequency range (I/O / C1 / C2): 24 max. / 500 max. / 22 KHz - DiSEqC.
13 - 862 MHz / 13 - 862 MHz / 13 - 862 MHz. To be installed with N2250.1 cover plates.
Basic loss (FM / DAB / VHF / UHF): Fitting boxes with 60mm distance between screws
25±1,5 dB / 25 ±1,5 dB / 8,0±0,7 dB / 8,0±0,7 dB. (codes: 1099, 1999 and 1999.2).
Through loss (FM / VHF / UHF):
2,0±0,3 dB / 2,0±0,5 dB / 2,0±0,5 dB.
Directivity (FM / TV): >12 dB / >9 dB. 8151.7 2CLA815170A1001 10
Isolation (FM / TV): >16 / >15.
Return loss (FM / TV): >12 / >12.
To be installed with N2250.8 cover plates.
Fitting boxes with 60mm distance between screws
(codes: 1099, 1999 and 1999.2).
8150.7 2CLA815070A1001 10
