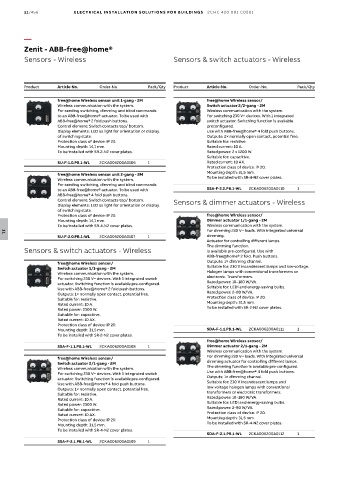

Page 1562 - Din prodcuts 2020

11/456 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit - ABB-free@home®
Sensors - Wireless Sensors & switch actuators - Wireless

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

free@home Wireless sensor unit 1-gang - 2M free@home Wireless sensor/
Wireless communication with the system. Switch actuator 2/2-gang - 2M
For sending switching, dimming and blind commands Wireless communication with the system.
to an ABB-free@home® actuator. To be used with For switching 230 V~ devices. With 1 integrated
ABB-free@home® 2 fold push buttons. switch actuator. Switching function is available
Control element: Switch contacts top/ bottom. preconfigured.
Display elements: LED as light for orientation or display. Use with ABB-free@home® 4 fold push buttons.
of switching state. Outputs: 2× normally open contact, potential free.
Protection class of device: IP 20. Suitable for: resistive.
Mounting depth: 14,1 mm. Rated current: 10 A.
To be installed with SR-2-N2 cover plates. Rated power: 2 x 1200 W.
Suitable for: capacitive.
SU-F-1.0.PB.1-WL 2CKA006200A0106 1 Rated current: 10 AX.
Protection class of device: IP 20.
free@home Wireless sensor unit 2-gang - 2M Mounting depth: 31,5 mm.
Wireless communication with the system. To be installed with SR-4-N2 cover plates.
For sending switching, dimming and blind commands
to an ABB-free@home® actuator. To be used with SSA-F-2.2.PB.1-WL 2CKA006200A0110 1
ABB-free@home® 4 fold push buttons.
Control element: Switch contacts top/ bottom. Sensors & dimmer actuators - Wireless
Display elements: LED as light for orientation or display.
of switching state.
Protection class of device: IP 20. free@home Wireless sensor/
Mounting depth: 14,1 mm. Dimmer actuator 1/1-gang - 2M
To be installed with SR-4-N2 cover plates. Wireless communication with the system.
For dimming 230 V~ loads. With integrated universal
11
SU-F-2.0.PB.1-WL 2CKA006200A0107 1 dimming.
Actuator for controlling different lamps.
The dimming function.
Sensors & switch actuators - Wireless Is available pre-configured. Use with
ABB-free@home® 2 fold. Push buttons.
free@home Wireless sensor/ Outputs: 1× dimming channel.
Switch actuator 1/1-gang - 2M Suitable for: 230 V incandescent lamps and low-voltage.
Wireless communication with the system. Halogen lamps with conventional transformers or
For switching 230 V~ devices. With 1 integrated switch electronic. Transformers.
actuator. Switching function is available pre-configured. Rated power: 10–180 W/VA.
Use with ABB-free@home® 2 fold push buttons. Suitable for: LEDi and energy-saving bulbs.
Outputs: 1× normally open contact, potential free. Rated power: 2–80 W/VA.
Suitable for: resistive. Protection class of device: IP 20.
Rated current: 10 A. Mounting depth: 31,5 mm.
Rated power: 2300 W. To be installed with SR-2-N2 cover plates.
Suitable for: capacitive.
Rated current: 10 AX.
Protection class of device: IP 20.
Mounting depth: 31,5 mm. SDA-F-1.1.PB.1-WL 2CKA006200A0111 1
To be installed with SR-2-N2 cover plates.
free@home Wireless sensor/
SSA-F-1.1.PB.1-WL 2CKA006200A0108 1 Dimmer actuator 2/1-gang - 2M
Wireless communication with the system.
For dimming 230 V~ loads. With integrated universal
free@home Wireless sensor/
Switch actuator 2/1-gang - 2M dimming actuator for controlling different lamps.
Wireless communication with the system. The dimming function is available pre-configured.
For switching 230 V~ devices. With 1 integrated switch Use with ABB-free@home® 4 fold push buttons.
actuator. Switching function is available pre-configured. Outputs: 1× dimming channel.
Use with ABB-free@home® 4 fold push buttons. Suitable for: 230 V incandescent lamps and
Outputs: 1× normally open contact, potential free. low-voltage halogen lamps with conventional
Suitable for: resistive. transformers or electronic transformers.
Rated current: 10 A. Rated power: 10–180 W/VA.
Rated power: 2300 W. Suitable for: LEDi and energy-saving bulbs.
Suitable for: capacitive. Rated power: 2–80 W/VA.
Rated current: 10 AX. Protection class of device: IP 20.
Protection class of device: IP 20. Mounting depth: 31,5 mm.
Mounting depth: 31,5 mm. To be installed with SR-4-N2 cover plates.
To be installed with SR-4-N2 cover plates.
SDA-F-2.1.PB.1-WL 2CKA006200A0112 1
SSA-F-2.1.PB.1-WL 2CKA006200A0109 1
