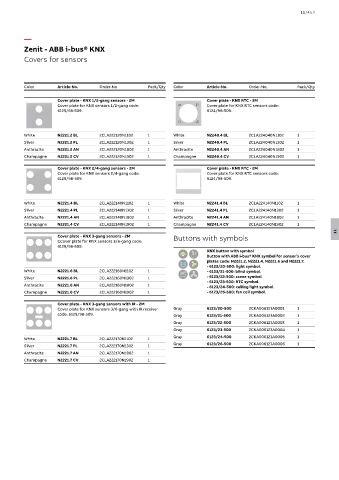

Page 1559 - Din prodcuts 2020

11/453

—
Zenit - ABB i-bus® KNX
Covers for sensors

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Cover plate - KNX 1/2-gang sensors - 2M Cover plate - KNX RTC - 2M
Cover plate for KNX sensors 1/2-gang code: Cover plate for KNX RTC sensors code:
6125/98-509. 6124/98-509.

White N2221.2 BL 2CLA222120N1102 1 White N2240.4 BL 2CLA224040N1102 1
Silver N2221.2 PL 2CLA222120N1302 1 Silver N2240.4 PL 2CLA224040N1302 1
Anthracite N2221.2 AN 2CLA222120N1802 1 Anthracite N2240.4 AN 2CLA224040N1802 1
Champagne N2221.2 CV 2CLA222120N1902 1 Champagne N2240.4 CV 2CLA224040N1902 1
Cover plate - KNX 2/4-gang sensors - 2M Cover plate - KNX RTC - 2M
Cover plate for KNX sensors 2/4-gang code: Cover plate for KNX RTC sensors code:
6126/98-509. 6124/98-509.

White N2221.4 BL 2CLA222140N1102 1 White N2241.4 BL 2CLA224140N1102 1
Silver N2221.4 PL 2CLA222140N1302 1 Silver N2241.4 PL 2CLA224140N1302 1
Anthracite N2221.4 AN 2CLA222140N1802 1 Anthracite N2241.4 AN 2CLA224140N1802 1
Champagne N2221.4 CV 2CLA222140N1902 1 Champagne N2241.4 CV 2CLA224140N1902 1
11
Cover plate - KNX 3-gang sensors - 2M Buttons with symbols
CCover plate for KNX sensors 3/6-gang code:
6129/96-509.
KNX button with symbol
Button with ABB i-bus® KNX symbol for sensor’s cover
plates code: N2221.2, N2221.4, N2221.6 and N2221.7.
- 6123/20-500: light symbol.
White N2221.6 BL 2CLA222160N1102 1 - 6123/21-500: blind symbol.
Silver N2221.6 PL 2CLA222160N1302 1 - 6123/22-500: scene symbol.
- 6123/23-500: RTC symbol.
Anthracite N2221.6 AN 2CLA222160N1802 1 - 6123/24-500: ceiling light symbol.
Champagne N2221.6 CV 2CLA222160N1902 1 - 6123/26-500: fan coil symbol.
Cover plate - KNX 3-gang sensors with IR - 2M
Cover plate for KNX sensors 3/6-gang with IR receiver Gray 6123/20-500 2CKA006123A0001 1
code: 6129/98-509. Gray 6123/21-500 2CKA006123A0002 1
Gray 6123/22-500 2CKA006123A0003 1
Gray 6123/23-500 2CKA006123A0004 1
Gray 6123/24-500 2CKA006123A0005 1
White N2221.7 BL 2CLA222170N1102 1
Silver N2221.7 PL 2CLA222170N1302 1 Gray 6123/26-500 2CKA006123A0006 1
Anthracite N2221.7 AN 2CLA222170N1802 1
Champagne N2221.7 CV 2CLA222170N1902 1
