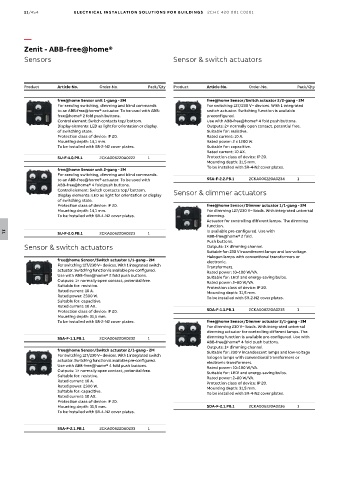

11/454 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit - ABB-free@home®
Sensors Sensor & switch actuators

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

free@home Sensor unit 1-gang - 2M free@home Sensor/Switch actuator 2/2-gang - 2M
For sending switching, dimming and blind commands For switching 127/230 V~ devices. With 1 integrated
to an ABB-free@home® actuator. To be used with ABB- switch actuator. Switching function is available
free@home® 2 fold push buttons. preconfigured.
Control element: Switch contacts top/ bottom. Use with ABB-free@home® 4 fold push buttons.
Display elements: LED as light for orientation or display. Outputs: 2× normally open contact, potential free.
of switching state. Suitable for: resistive.
Protection class of device: IP 20. Rated current: 10 A.
Mounting depth: 14,1 mm. Rated power: 2 x 1200 W.
To be installed with SR-2-N2 cover plates. Suitable for: capacitive.
Rated current: 10 AX.
SU-F-1.0.PB.1 2CKA006220A0222 1 Protection class of device: IP 20.
Mounting depth: 31,5 mm.
To be installed with SR-4-N2 cover plates.
free@home Sensor unit 2-gang - 2M
For sending switching, dimming and blind commands.
to an ABB-free@home® actuator. To be used with SSA-F-2.2.PB.1 2CKA006220A0234 1
ABB-free@home® 4 fold push buttons.
Control element: Switch contacts top/ bottom. Sensor & dimmer actuators
Display elements: LED as light for orientation or display
of switching state.
Protection class of device: IP 20. free@home Sensor/Dimmer actuator 1/1-gang - 2M
Mounting depth: 14,1 mm. For dimming 127/230 V~ loads. With integrated universal
To be installed with SR-4-N2 cover plates. dimming.
Actuator for controlling different lamps. The dimming
function.
Is available pre-configured. Use with
SU-F-2.0.PB.1 2CKA006220A0223 1
ABB-free@home® 2 fold.
11
Push buttons.
Sensor & switch actuators Outputs: 1× dimming channel.
Suitable for: 230 V incandescent lamps and low-voltage.
Halogen lamps with conventional transformers or
free@home Sensor/Switch actuator 1/1-gang - 2M electronic.
For switching 127/230 V~ devices. With 1 integrated switch Transformers.
actuator. Switching function is available pre-configured. Rated power: 10–180 W/VA.
Use with ABB-free@home® 2 fold push buttons. Suitable for: LEDi and energy-saving bulbs.
Outputs: 1× normally open contact, potential free. Rated power: 2–80 W/VA.
Suitable for: resistive. Protection class of device: IP 20.
Rated current: 10 A. Mounting depth: 31,5 mm.
Rated power: 2300 W. To be installed with SR-2-N2 cover plates.
Suitable for: capacitive.
Rated current: 10 AX.
Protection class of device: IP 20. SDA-F-1.1.PB.1 2CKA006220A0235 1
Mounting depth: 31,5 mm.
To be installed with SR-2-N2 cover plates. free@home Sensor/Dimmer actuator 2/1-gang - 2M
For dimming 230 V~ loads. With integrated universal
dimming actuator for controlling different lamps. The
SSA-F-1.1.PB.1 2CKA006220A0232 1 dimming function is available pre-configured. Use with
ABB-free@home® 4 fold push buttons.
Outputs: 1× dimming channel.
free@home Sensor/Switch actuator 2/1-gang - 2M Suitable for: 230 V incandescent lamps and low-voltage
For switching 127/230 V~ devices. With 1 integrated switch halogen lamps with conventional transformers or
actuator. Switching function is available pre-configured. electronic transformers.
Use with ABB-free@home® 4 fold push buttons. Rated power: 10–180 W/VA.
Outputs: 1× normally open contact, potential free. Suitable for: LEDi and energy-saving bulbs.
Suitable for: resistive. Rated power: 2–80 W/VA.
Rated current: 10 A. Protection class of device: IP 20.
Rated power: 2300 W. Mounting depth: 31,5 mm.
Suitable for: capacitive. To be installed with SR-4-N2 cover plates.
Rated current: 10 AX.
Protection class of device: IP 20.
Mounting depth: 31,5 mm. SDA-F-2.1.PB.1 2CKA006220A0236 1
To be installed with SR-4-N2 cover plates.

SSA-F-2.1.PB.1 2CKA006220A0233 1
