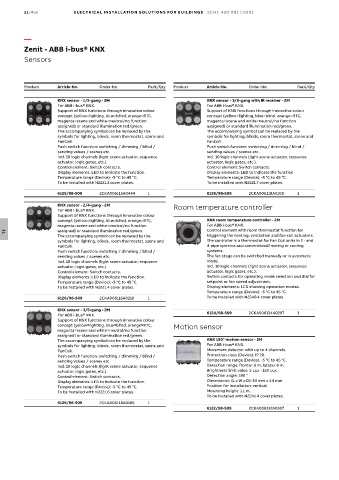

11/452 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit - ABB i-bus® KNX
Sensors

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

KNX sensor - 1/2-gang - 2M KNX sensor - 3/6-gang with IR receiver - 2M
For ABB i-bus® KNX. For ABB i-bus® KNX.
Support of KNX functions through innovative colour Support of KNX functions through innovative colour
concept (yellow=lighting, blue=blind, orange=RTC, concept (yellow=lighting, blue=blind, orange=RTC,
magenta=scene and white=neutral/no function magenta=scene and white=neutral/no function
assigned) or standard illumination red/green. assigned) or standard illumination red/green.
The accompanying symbol can be replaced by the The accompanying symbol can be replaced by the
symbols for lighting, blinds, room thermostat, szene and symbols for lighting, blinds, room thermostat, szene and
FanCoil. FanCoil.
Push switch function: switching / dimming / blind / Push switch function: switching / dimming / blind /
sending values / scenes etc. sending values / scenes etc.
Incl. 10 logic channels (light scene actuator, sequence Incl. 10 logic channels (light scene actuator, sequence
actuator, logic gates, etc.). actuator, logic gates, etc.).
Control element: Switch contacts. Control element: Switch contacts.
Display elements: LED to indicate the function. Display elements: LED to indicate the function.
Temperature range (Device): -5 °C to 45 °C. Temperature range (Device): -5 °C to 45 °C.
To be installed with N2221.2 cover plates. To be installed with N2221.7 cover plates.
6125/98-509 2CKA006115A0444 1 6129/98-509 2CKA006118A0108 1
KNX sensor - 2/4-gang - 2M Room temperature controller
For ABB i-bus® KNX.
Support of KNX functions through innovative colour
concept (yellow=lighting, blue=blind, orange=RTC, KNX room temperature controller - 2M
magenta=scene and white=neutral/no function For ABB i-bus® KNX.
assigned) or standard illumination red/green. Control element with room thermostat function for
The accompanying symbol can be replaced by the triggering the heating, ventilation and fan-coil actuators.
11
symbols for lighting, blinds, room thermostat, szene and The controller is a thermostat for Fan Coil units in 2 - and
FanCoil. 4-pipe systems and conventional heating or cooling
Push switch function: switching / dimming / blind / systems.
sending values / scenes etc. The fan stage can be switched manually or in automatic
Incl. 10 logic channels (light scene actuator, sequence mode.
actuator, logic gates, etc.). Incl. 10 logic channels (light scene actuator, sequence
Control element: Switch contacts. actuator, logic gates, etc.).
Display elements: LED to indicate the function. Switch contacts for operating mode selection and dial for
Temperature range (Device): -5 °C to 45 °C. setpoint or fan speed adjustment.
To be installed with N2221.4 cover plates. Display elements: LCD showing operation modes.
Temperature range (Device): -5 °C to 45 °C.
6126/98-509 2CKA006116A0219 1 To be installed with N2240.4 cover plates.
KNX sensor - 3/6-gang - 2M
For ABB i-bus® KNX. 6124/98-509 2CKA006134A0297 1
Support of KNX functions through innovative colour
concept (yellow=lighting, blue=blind, orange=RTC, Motion sensor
magenta=scene and white=neutral/no function
assigned) or standard illumination red/green.
The accompanying symbol can be replaced by the KNX 180° motion sensor - 2M
symbols for lighting, blinds, room thermostat, szene and For ABB i-bus® KNX.
FanCoil. Movement detector with up to 4 channels.
Push switch function: switching / dimming / blind / Protection class (Device): IP 20.
sending values / scenes etc. Temperature range (Device): -5 °C to 45 °C.
Incl. 10 logic channels (light scene actuator, sequence Detection range: frontal: 6 m, lateral: 6 m.
actuator, logic gates, etc.). Brightness limit value: 5 Lux - 150 Lux.
Control element: Switch contacts. Detection angle: 180 °
Display elements: LED to indicate the function. Dimensions: (L x W x D): 53 mm x 44 mm.
Temperature range (Device): -5 °C to 45 °C. Position for installation: vertical.
To be installed with N2221.6 cover plates. Mounting height: 1.1 m.
To be installed with N2241.4 cover plates.
6129/96-509 2CKA006118A0105 1
6122/98-509 2CKA006132A0307 1
