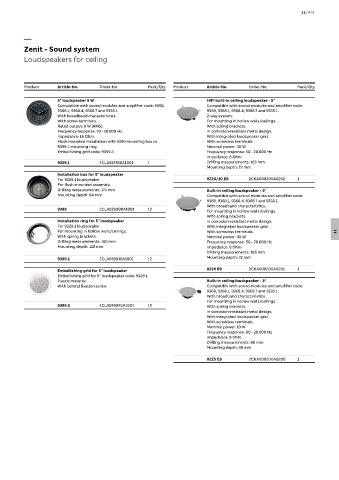

Zenit - Sound system
Loudspeakers for ceiling

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

5" loudspeaker 6 W HiFi built-in ceiling loudspeaker - 5"
Compatible with sound modules and amplifier code: 9368, Compatible with sound modules and amplifier code:
9368.1, 9368.4, 9368.7 and 9335.1. 9368, 9368.1, 9368.4, 9368.7 and 9335.1.
With broadband characteristics. 2-way system.
With screw terminals. For mounting in hollow walls/ceilings.
Rated output: 6 W (RMS). With spring brackets.
Frequency response: 70 - 10.000 Hz. In corrosion-resistant metal design.
Impedance: 16 Ohm. With integrated loudspeaker grid.
Flush mounted installation with 9399 mounting box or With screwless terminals.
9399.1 mounting ring. Nominal power: 30 W
Embellishing grid code: 9399.2. Frequency response: 50 - 20.000 Hz
Impedance: 8 Ohm
9329.1 2CLA932910A1001 1 Drilling measurements: 165 mm.
Mounting depth: 72 mm.
Installation box for 5" loudspeaker
For 9329.1 loudspeaker. 8226/10 EB 2CKA008200A0202 1
For flush-mounted assembly.
Drilling measurements: 174 mm. Built-in ceiling loudspeaker - 5"
Mounting depth: 84 mm. Compatible with sound modules and amplifier code:
9368, 9368.1, 9368.4, 9368.7 and 9335.1.
With broadband characteristics.
9399 2CLA939900A1001 12
For mounting in hollow walls/ceilings.
With spring brackets.
Installation ring for 5" loudspeaker In corrosion-resistant metal design.
For 9329.1 loudspeaker. With integrated loudspeaker grid.
For mounting in hollow walls/ceilings. With screwless terminals. 11
With spring brackets. Nominal power: 30 W
Drilling measurements: 160 mm. Frequency response: 50 - 20.000 Hz
Mounting depth: 110 mm. Impedance: 8 Ohm
Drilling measurements: 165 mm
9399.1 2CLA939910A1001 12 Mounting depth: 72 mm

Embellishing grid for 5" loudspeaker 8226 EB 2CKA008200A0201 1
Embellishing grid for 5" loudspeaker code: 9329.1.
Plastic material. Built-in ceiling loudspeaker - 3"
With central fixation screw. Compatible with sound modules and amplifier code:
9368, 9368.1, 9368.4, 9368.7 and 9335.1.
With broadband characteristics.
For mounting in hollow walls/ceilings.
9399.2 2CLA939920A1001 12 With spring brackets.
In corrosion-resistant metal design.
With integrated loudspeaker grid.
With screwless terminals.
Nominal power: 10 W
Frequency response: 90 - 20.000 Hz
Impedance: 8 Ohm
Drilling measurements: 90 mm
Mounting depth: 38 mm
8225 EB 2CKA008200A0200 1
