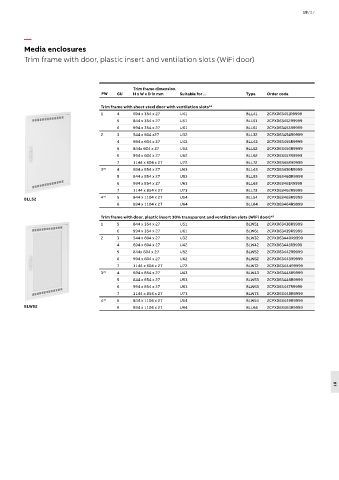

Media enclosures
Trim frame with door, plastic insert and ventilation slots (WiFi door)

Trim frame dimension
PW GU H x W x D in mm Suitable for ... Type Order code

Trim frame with sheet steel door with ventilation slots* 2
1 4 694 x 354 x 27 U41 BLL41 2CPX063451R9999
5 844 x 354 x 27 U51 BLL51 2CPX063452R9999
6 994 x 354 x 27 U61 BLL61 2CPX063453R9999
2 3 544 x 604 x27 U32 BLL32 2CPX063454R9999
4 694 x 604 x 27 U42 BLL42 2CPX063455R9999
5 844x 604 x 27 U52 BLL52 2CPX063456R9999
6 994 x 604 x 27 U62 BLL62 2CPX063457R9999
7 1144 x 604 x 27 U72 BLL72 2CPX063458R9999
3* 1 4 694 x 854 x 27 U43 BLL43 2CPX063459R9999
5 844 x 854 x 27 U53 BLL53 2CPX063460R9999
6 994 x 854 x 27 U63 BLL63 2CPX063461R9999
7 1144 x 854 x 27 U73 BLL73 2CPX063462R9999
BLL52 4* 1 5 844 x 1104 x 27 U54 BLL54 2CPX063463R9999
6 994 x 1104 x 27 U64 BLL64 2CPX063464R9999

Trim frame with door, plastic insert 30% transparent and ventilation slots (WiFi door)* 2
1 5 844 x 354 x 27 U51 BLW51 2CPX063438R9999
6 994 x 354 x 27 U61 BLW61 2CPX063439R9999
2 3 544 x 604 x 27 U32 BLW32 2CPX063440R9999
4 694 x 604 x 27 U42 BLW42 2CPX063441R9999
5 844x 604 x 27 U52 BLW52 2CPX063442R9999
6 994 x 604 x 27 U62 BLW62 2CPX063443R9999
7 1144 x 604 x 27 U72 BLW72 2CPX063444R9999
3* 1 4 694 x 854 x 27 U43 BLW43 2CPX063445R9999
5 844 x 854 x 27 U53 BLW53 2CPX063446R9999
6 994 x 854 x 27 U63 BLW63 2CPX063447R9999
7 1144 x 854 x 27 U73 BLW73 2CPX063448R9999
4* 1 5 844 x 1104 x 27 U54 BLW54 2CPX063449R9999
BLW52 6 994 x 1104 x 27 U64 BLL64 2CPX063464R9999
