18/116 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

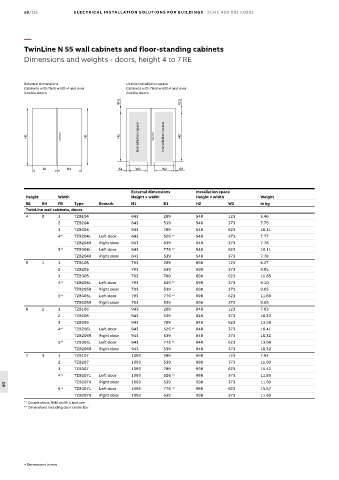

TwinLine N 55 wall cabinets and floor-standing cabinets
Dimensions and weights - doors, height 4 to 7 RE

External dimensions Usable installation space
Cabinets with field width 4 and over Cabinets with field width 4 and over
Double doors Double doors
47.5 47.5

H1 H1 H2 Installation space Installation space H2

B1 B1 64 W2 W2 64

External dimensions Installation space
Height Width Height x width Height x width Weight
RE BH FB Type Remark H1 B1 H2 W2 in kg
TwinLine wall cabinets, doors
4 0 1 TZB104 643 289 548 123 5.46
2 TZB204 643 539 548 373 7.75
3 TZB304 643 789 548 623 10.11
4* 1 TZB204L Left door 643 526 * 2 548 373 7.77
TZB204R Right door 643 539 548 373 7.78
5* 1 TZB304L Left door 643 776 * 2 548 623 10.11
TZB204R Right door 643 539 548 373 7.78
5 1 1 TZB105 793 289 698 123 6.27
2 TZB205 793 539 698 373 9.05
3 TZB305 793 789 698 623 11.85
4* 1 TZB205L Left door 793 526 * 2 698 373 9.10
TZB205R Right door 793 539 698 373 9.05
5* 1 TZB305L Left door 793 776 * 2 698 623 11.89
TZB205R Right door 793 539 698 373 9.05
6 2 1 TZB106 943 289 848 123 7.03
2 TZB206 943 539 848 373 10.32
3 TZB306 943 789 848 623 13.58
4* 1 TZB206L Left door 943 526 * 2 848 373 10.41
TZB206R Right door 943 539 848 373 10.32
5* 1 TZB306L Left door 943 776 * 2 848 623 13.68
TZB206R Right door 943 539 848 373 10.32
7 3 1 TZB107 1093 289 998 123 7.94
2 TZB207 1093 539 998 373 11.69
3 TZB307 1093 789 998 623 15.42
4* 1 TZB207L Left door 1093 526 * 2 998 373 11.85
TZB207R Right door 1093 539 998 373 11.69
5* 1 TZB307L Left door 1093 776 * 2 998 623 15.57
18
TZB207R Right door 1093 539 998 373 11.69
* 1 Double doors field width 4 and over
* 2 Dimensions including door center bar

> Dimensions in mm
