18/157

—

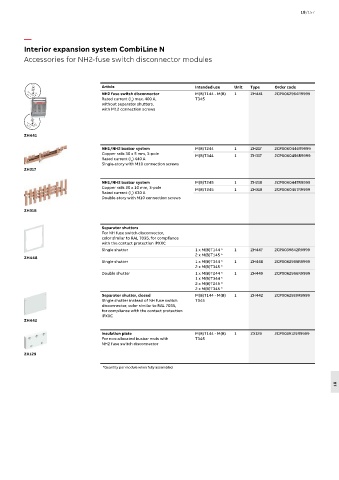

Interior expansion system CombiLine N
Accessories for NH2-fuse switch disconnector modules

Article Intended use Unit Type Order code
NH2 fuse switch disconnector M(B)T144 - M(B) 1 ZH441 2CPX062964R9999
Rated current (I ) max. 400 A, T345
n
without separator shutters,
with M12 connection screws

ZH441

NH1/NH2 busbar system M(B)T244 1 ZH217 2CPX060446R9999
Copper rails 30 x 5 mm, 3-pole M(B)T344 1 ZH317 2CPX060456R9999
Rated current (I ) 440 A
n
Single-story with M10 connection screws
ZH317
NH1/NH2 busbar system M(B)T245 1 ZH218 2CPX060447R9999
Copper rails 30 x 10 mm, 3-pole M(B)T345 1 ZH318 2CPX060457R9999
Rated current (I ) 630 A
n
Double-story with M10 connection screws
ZH318

Separator shutters
For NH fuse switch disconnector,
color similar to RAL 7035, for compliance
with the contact protection IPXXC
Single shutter 1 x M(B)T144 * 1 ZH447 2CPX039842R9999
2 x M(B)T145 *
ZH448
Single shutter 1 x M(B)T344 * 1 ZH448 2CPX062965R9999
2 x M(B)T345 *
Double shutter 1 x M(B)T244 * 1 ZH449 2CPX062966R9999
1 x M(B)T344 *
2 x M(B)T245 *
2 x M(B)T345 *
Separator shutter, closed M(B)T144 - M(B) 1 ZH442 2CPX062939R9999
Single shutter instead of NH fuse switch T345
disconnector, color similar to RAL 7035,
for compliance with the contact protection
IPXXC
ZH442
Insulation plate M(B)T144 - M(B) 1 ZX129 2CPX039129R9999
For non-allocated busbar ends with T345
NH2 fuse switch disconnector
ZX129

*Quantity per module when fully assembled
